Using a piggy back fuse from the fusebox as you say is your best bet, only other option i would use is the power socket wiring in the centre console. I reckon the easiest option is the fuesbox though.

[GiveMeABreak]

I agree, stick to a suitable fused connection from the fuse box, or you could be inviting additional electrical problems with other equipment.

[Engenia]

Which is why I was looking for a wiring diagram - to make sure I didn't cause any unwanted problems.
Thanks for your help, both of you. I'll take the obvious path.

[Sponk]

I'll sort it - I've deleted the previous diagrams in lieu of these:

Injection



ESP

Hi Marc. Is this for an EDC16C34? If so, is 4050 the exhaust pressure sensor?

[GiveMeABreak]

If you want a diagram, pop your VIN up and I'll see if I have one specifically for your vehicle.

[Sponk]

If you want a diagram, pop your VIN up and I'll see if I have one specifically for your vehicle.

Sounds good, thanks

VF7**************[VIN obfuscated, can be read by forum staff]

[Sponk]

If you want a diagram, pop your VIN up and I'll see if I have one specifically for your vehicle.

Is this the same? viewtopic.php?t=61834

Says TED motor, where the one I'm looking for is 9HZ

[GiveMeABreak]

Please be patient, I've been out this morning. I'll put the correct one up shortly....

[GiveMeABreak]

Ok, so here are 2 diagrams. One for the particle filter system and one for the main injection:

Particle Filter

1341: particle filter differential pressure sensor /
1343: downstream exhaust gas high temperature sensor /



Injection

[Sponk]

Ok, so here are 2 diagrams. One for the particle filter system and one for the main injection:

Thank you very much

[Sponk]

Ok, so here are 2 diagrams. One for the particle filter system and one for the main injection:

May I trouble you for one more VF3**************[VIN obfuscated, can be read by forum staff] only with pins to the ECU and maybe highlight lambda? Thank you.

[GiveMeABreak]

1343: downstream exhaust gas high temperature sensor /

[Sponk]

1343: downstream exhaust gas high temperature sensor /

So 1310 lambda?

[GiveMeABreak]

1310 Airflow Meter.

Diesels don't often have lambda sensors.

For a list of codes look here on the wiki - most are here and in sections of numerical hierarchy:

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

[Sponk]

1310 Airflow Meter.

Diesels don't often have lambda sensors.

For a list of codes look here on the wiki - most are here and in sections of numerical hierarchy:

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

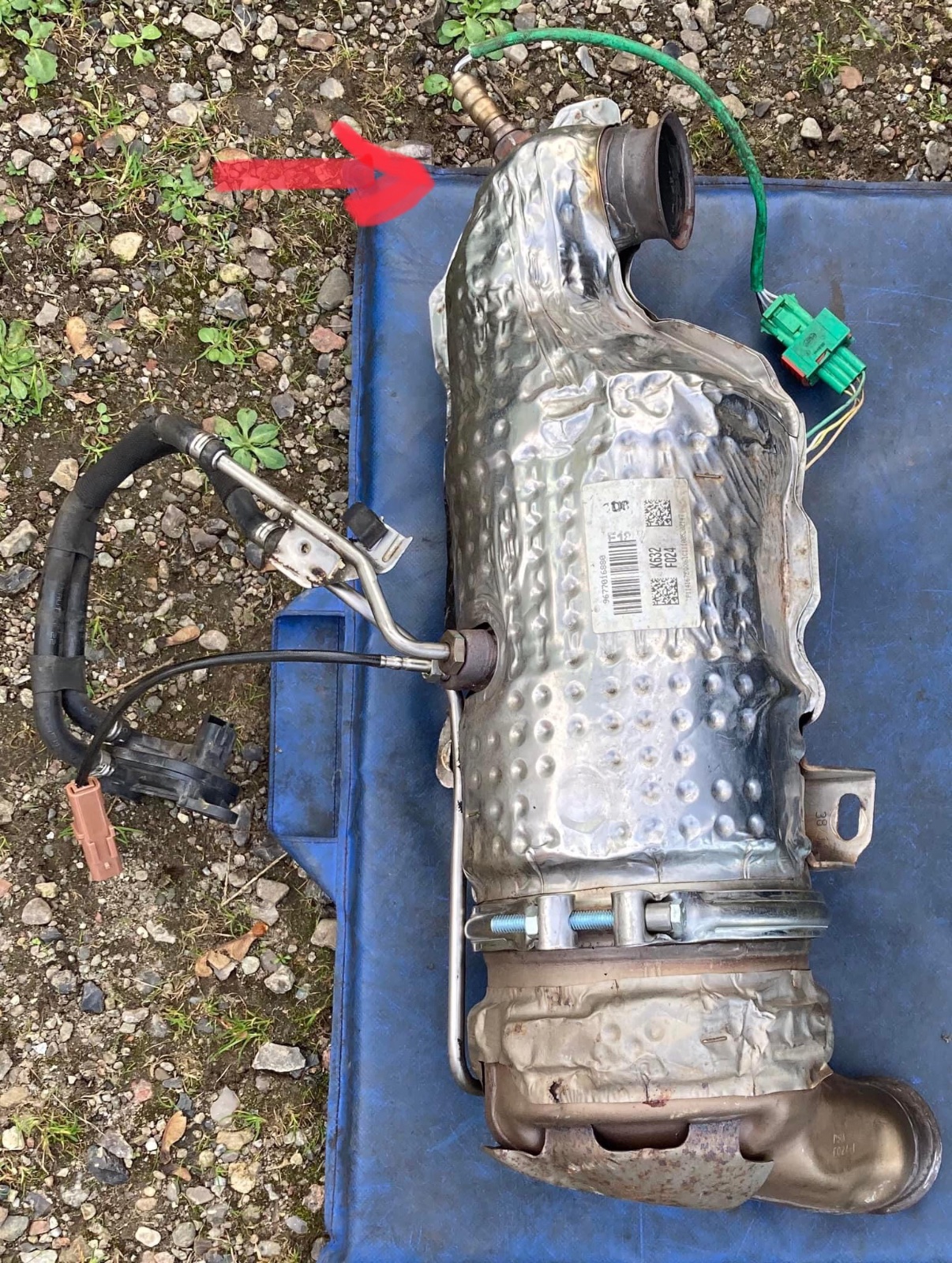

has a catalytic and particulate filter for a Peugeot 308 I 11-13 HDI 1.6 82KW (VF3**************[VIN obfuscated, can be read by forum staff]) Where the temperature sensor downstream sits between the two next to the inlet pressure pipe. There is then a hole at the top, before the catalytic converter, where a lambda probe fits. If it's not a lambda, what is it then?
