Disabling coded keypad Peugeot 405

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
carlo14
Posts: 66
Joined: 29 Apr 2009, 08:47

Unread post by carlo14 »

I don't know the code! :(

Would it be simpler to swap for an ECU I have from an identical car, which I know the code for, or is it not as simple as that? (Is it easy to swap an ECU over?)
Top
citronut
Posts: 10937
Joined: 29 Apr 2005, 00:46
x 94

Unread post by citronut »

phine your local pug dealer and they should be able to get the code for you,

regards malcolm
Top
citroenxm
Fallen Hero
Posts: 8061
Joined: 30 Dec 2004, 23:10
x 70

Unread post by citroenxm »

In the 405 with the Simple ECU coding YES very simple

Ive no idea were the engine ECU is on the 405, but if you simply swap the ECU for the known coded one, then the Keypad will call for the code from the ECU...

Having an Unlocked ECU is very handy to have in reality... if you lock the coded one, swap it back over.

It will be a long 144 pin or so plug, with a small catch you pull back to lift the Harness plug off the top of the ECU...

Paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
Top
Aurochs
Posts: 3
Joined: 08 Dec 2019, 16:48

Re: Disabling coded keypad Peugeot 405

Unread post by Aurochs »

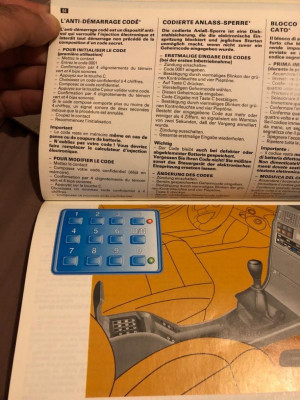

Lets present what the original car manual says...
Attachments
Top
Aurochs
Posts: 3
Joined: 08 Dec 2019, 16:48

Re: Disabling coded keypad Peugeot 405

Unread post by Aurochs »

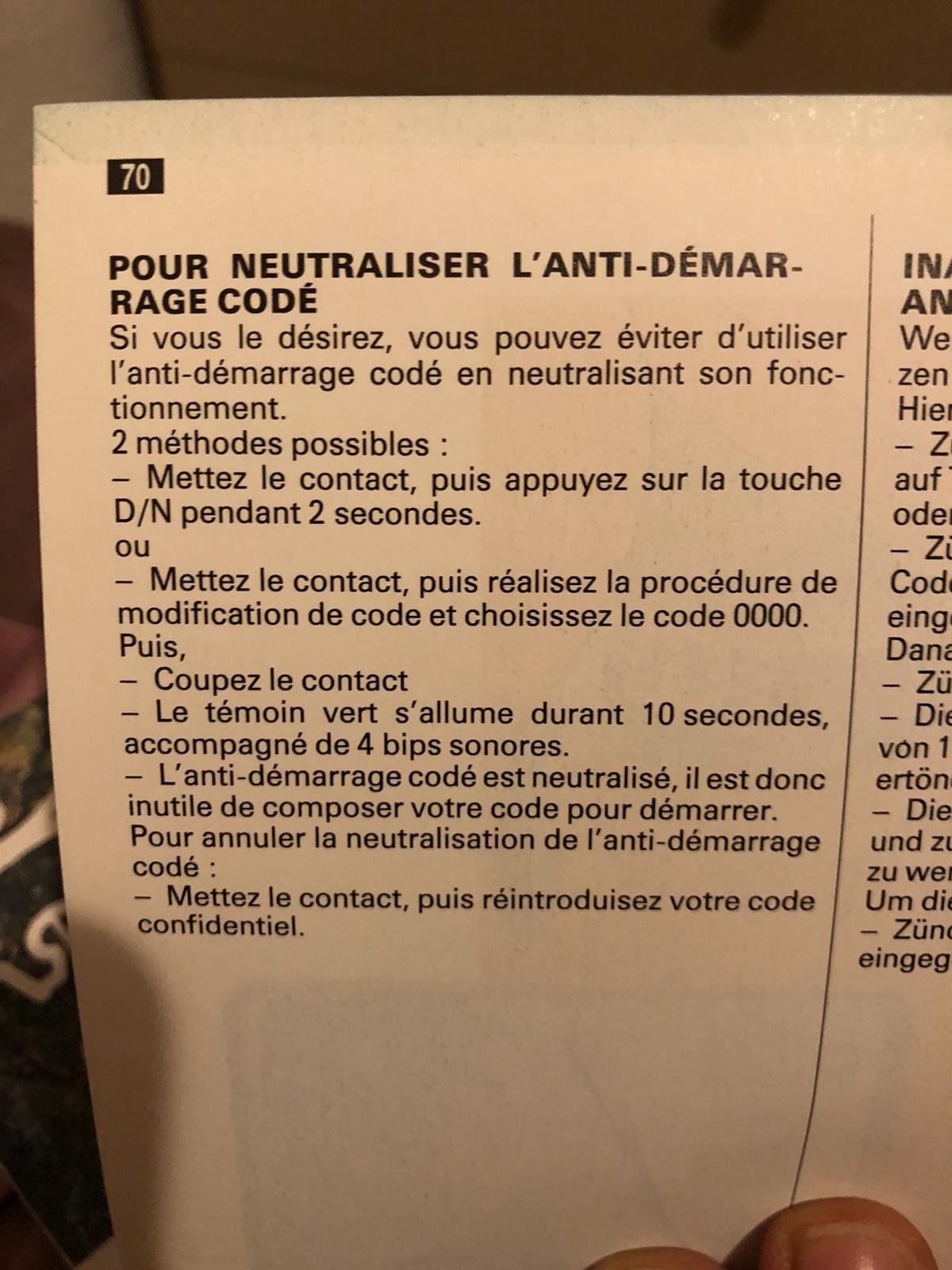

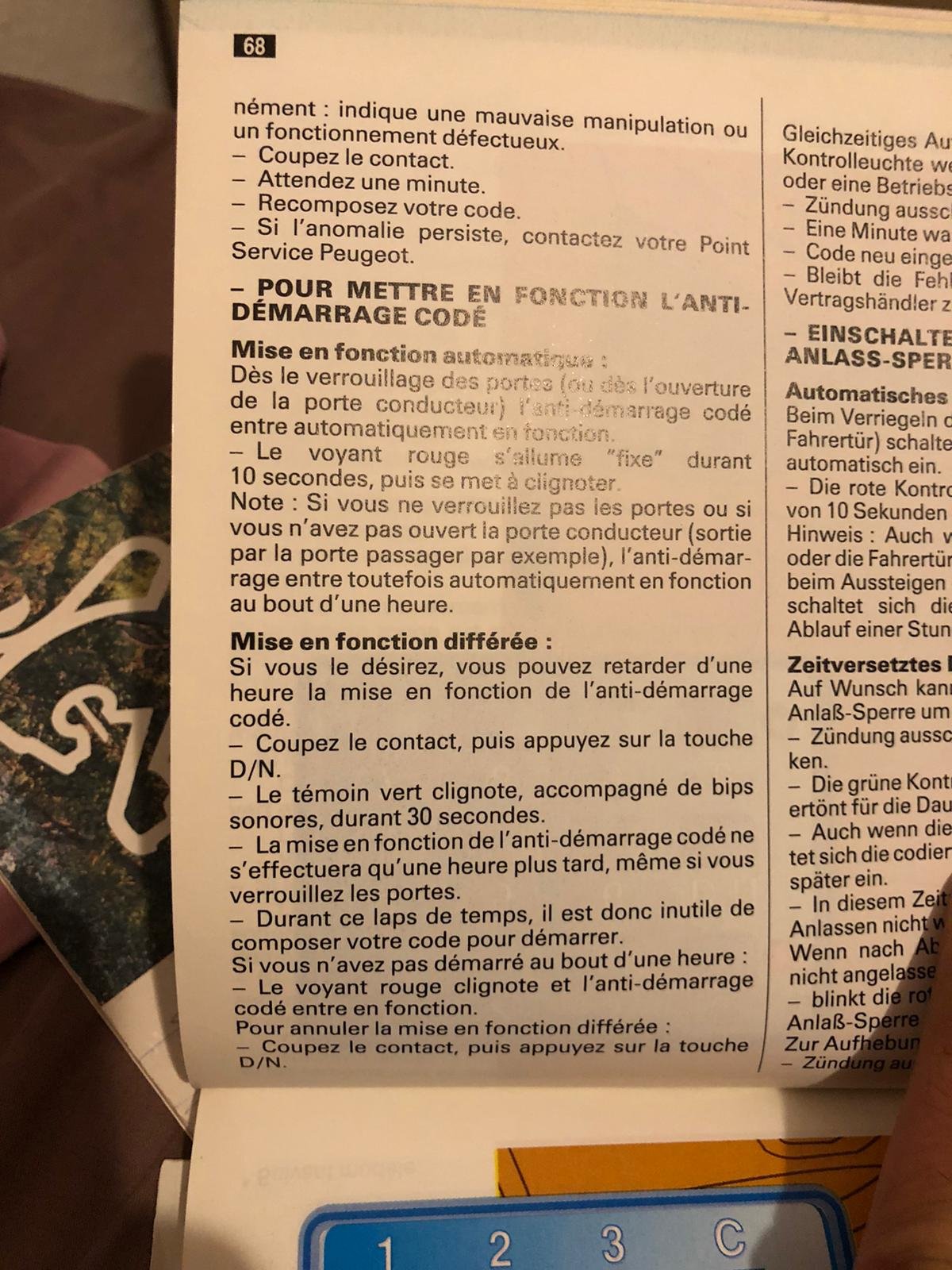

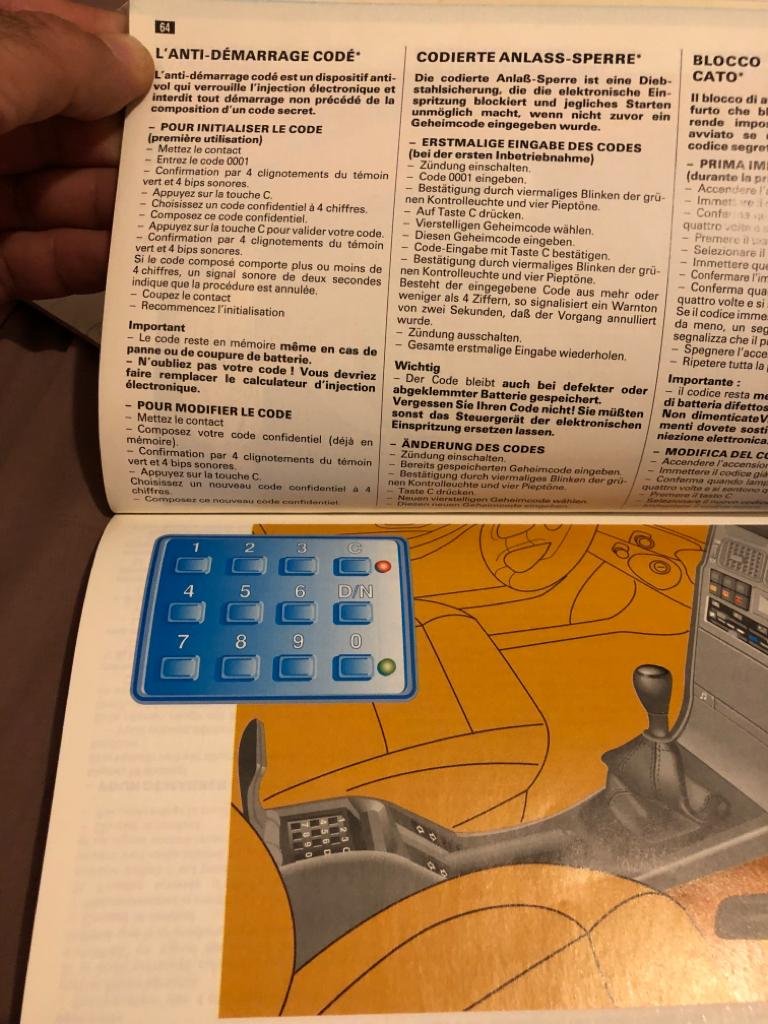

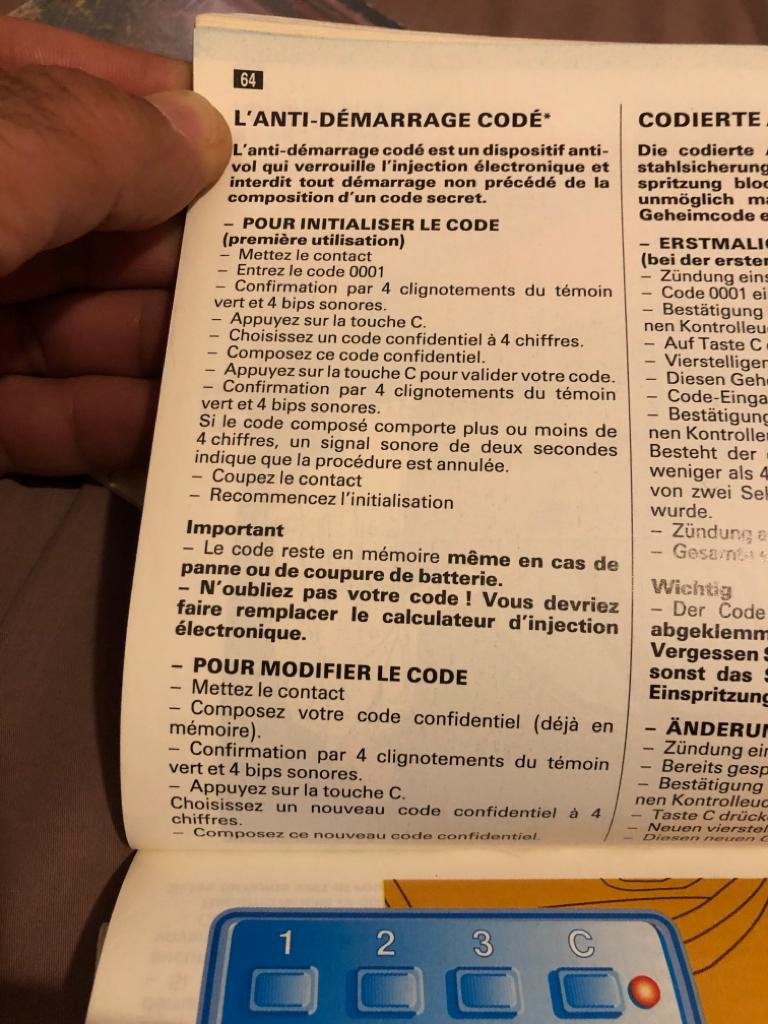

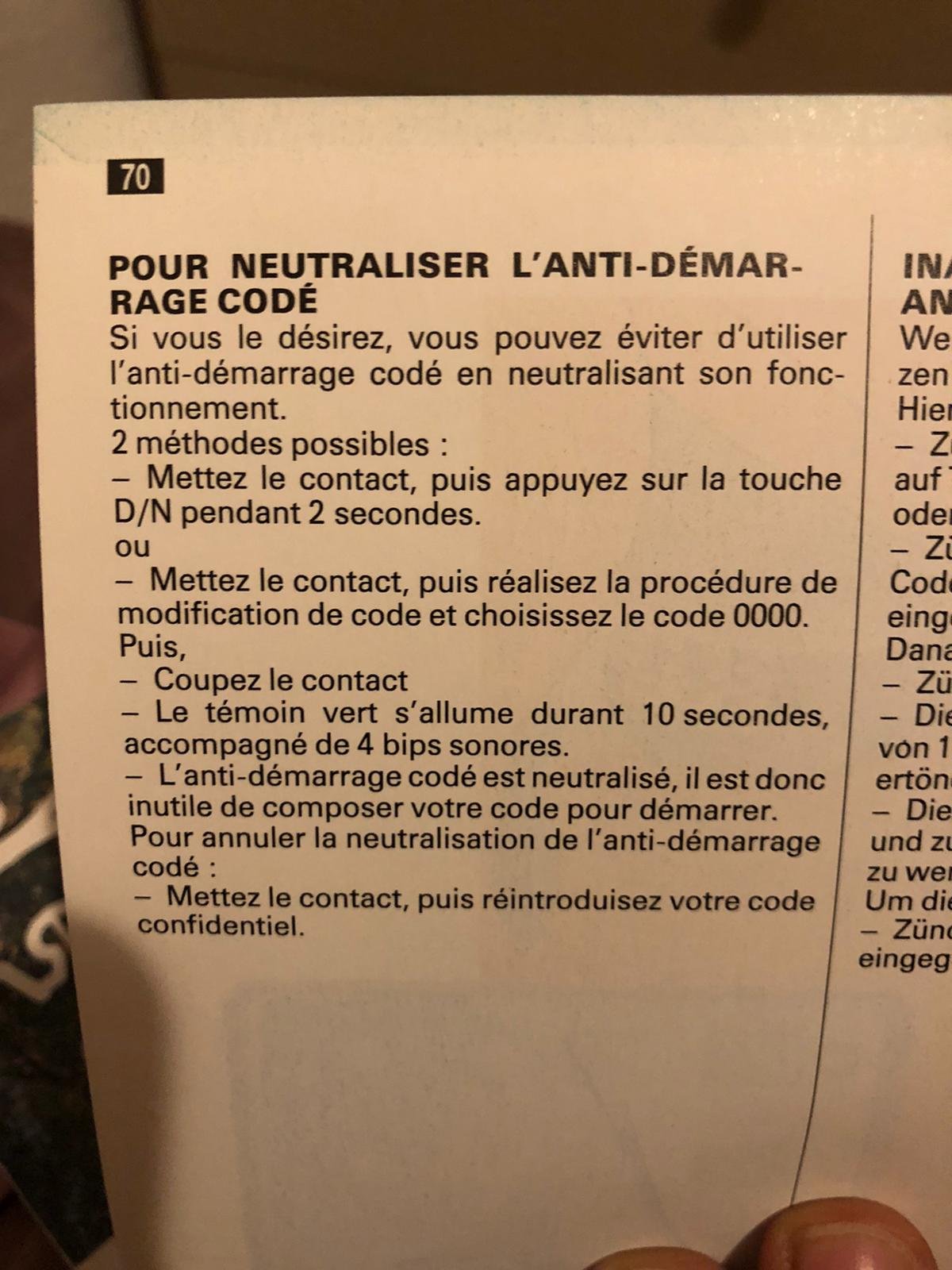

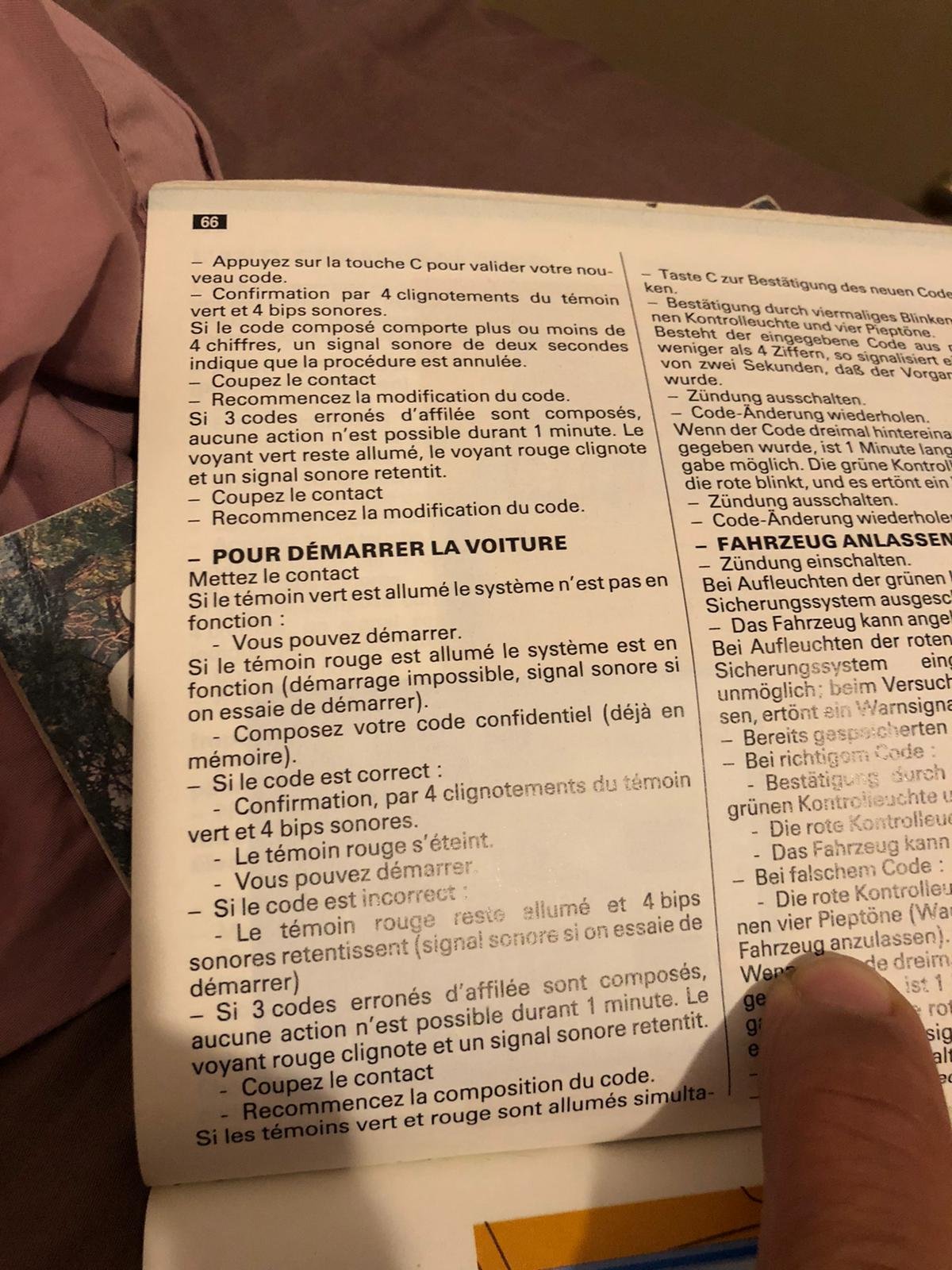

Lets see what the car Presentation Manual is saying...
Attachments
Top
Michel

Re: Disabling coded keypad Peugeot 405

Unread post by Michel »

I'm all for being helpful, but 9 years is a little long to wait for an answer.
Top
User avatar
white exec
Posts: 7445
Joined: 21 Dec 2015, 12:46
x 1750

Re: Disabling coded keypad Peugeot 405

Unread post by white exec »

We've all done it - read a post and taken lots of trouble answering it.
Only to find out the query was from another era!
No calamity: history is what we can all learn from... :gh:
Chris
Top
Michel

Re: Disabling coded keypad Peugeot 405

Unread post by Michel »

white exec wrote: 12 Dec 2019, 18:49 history is what we can all learn from... :gh:
I fear your theory will be disproved in the UK over the next 24 hours.. :roll:
Top
User avatar
white exec
Posts: 7445
Joined: 21 Dec 2015, 12:46
x 1750

Re: Disabling coded keypad Peugeot 405

Unread post by white exec »

Let's see in the morning. You could be right . . . :shock:
Chris
Top
Aurochs
Posts: 3
Joined: 08 Dec 2019, 16:48

Re: Disabling coded keypad Peugeot 405

Unread post by Aurochs »

Dear ones, I was upset to solve this issue several months ago, and I could find a solution NOWHERE online... My luck was a friend who has helped me with the instructions in the car Presentation Manual. Well, lets hope I am the last one who will be troubled with this... :)

Kind regards, Doru
Top
briansib
Posts: 7
Joined: 27 Nov 2019, 08:56

Re: Disabling coded keypad Peugeot 405

Unread post by briansib »

hello

can i have an English Translated manual on this.
