Citroen, DS Automobiles and Peugeot Official Part Number Requests

[GiveMeABreak]

Confusingly, the part is the same (!) for both with and without ABS
(1) Hydraulic Fluid Return Harness, part: 5270R6 (No Longer Available).

[xantia_v6]

The LHD version is available after market, but would need extending to the RHD brake valve.
https://www.drxantia.com/index.php/en/p ... B&keyword=

[Rhothgar]

Afternoon Marc,

No particular rush but could I have the diagrams for the air con on the HDi please and any servicing information that might be available too please?

[kuhar]

Hello Marc,

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

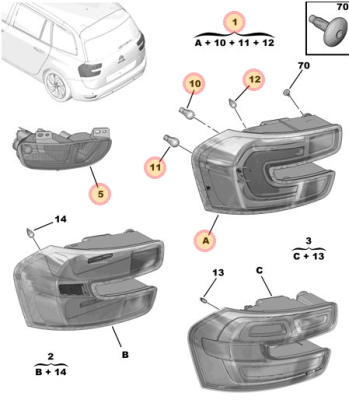

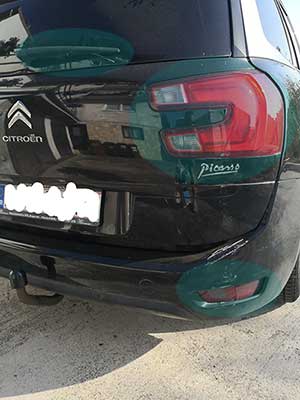

It should be easy to find these (image attached):
- right rear tail light
- right rear reflective-only (cat-eyes) plastic
- rear wiper rubber/gummi (I only need the rubber part, not the whole wiper, or is it all-in-one?)

Thank you!

[RuiV]

@RuiV

I need to change the whole kit (belt, whater pump, tensor,...). It has a unique part number (the kit). Can you help me?

[GiveMeABreak]

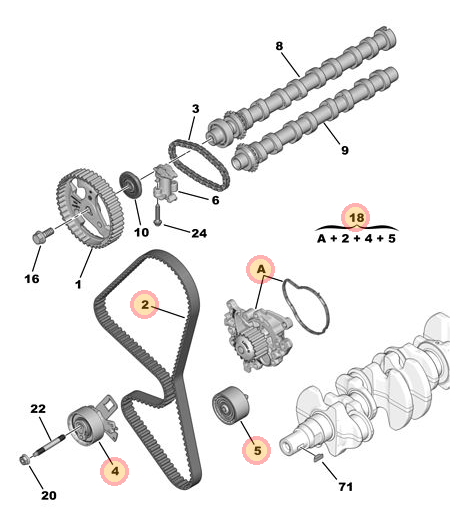

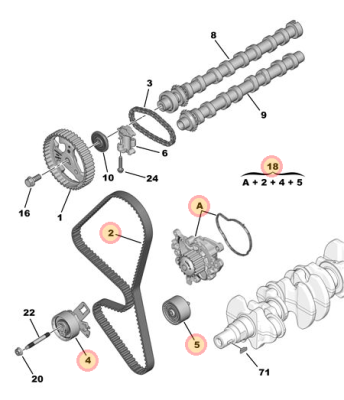

(18) Coolant Pump & Timing Kit, part: 1638159680, £350.52

[GiveMeABreak]

Hello Marc,

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

It should be easy to find these (image attached):
- right rear tail light
- right rear reflective-only (cat-eyes) plastic
- rear wiper rubber/gummi (I only need the rubber part, not the whole wiper, or is it all-in-one?)

Thank you!

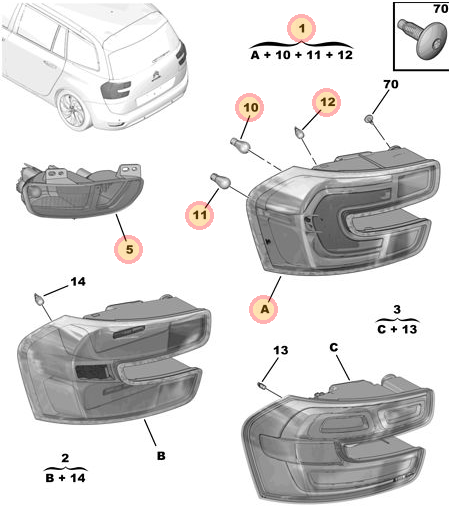

Lights

(1) Rear Lamp (Right), part: 9676853880, £284.14
(5) Rear Complementary Lamp (Right), part: 9676122880, £132.08

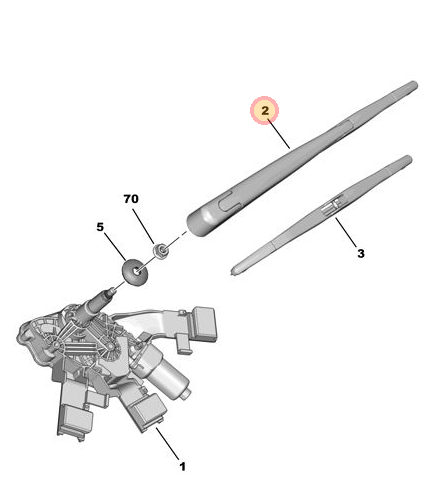

Rear Wiper

(2) Rear Wiper Blade Holder, part: 1609428380, £35.53

[Huskyxantia]

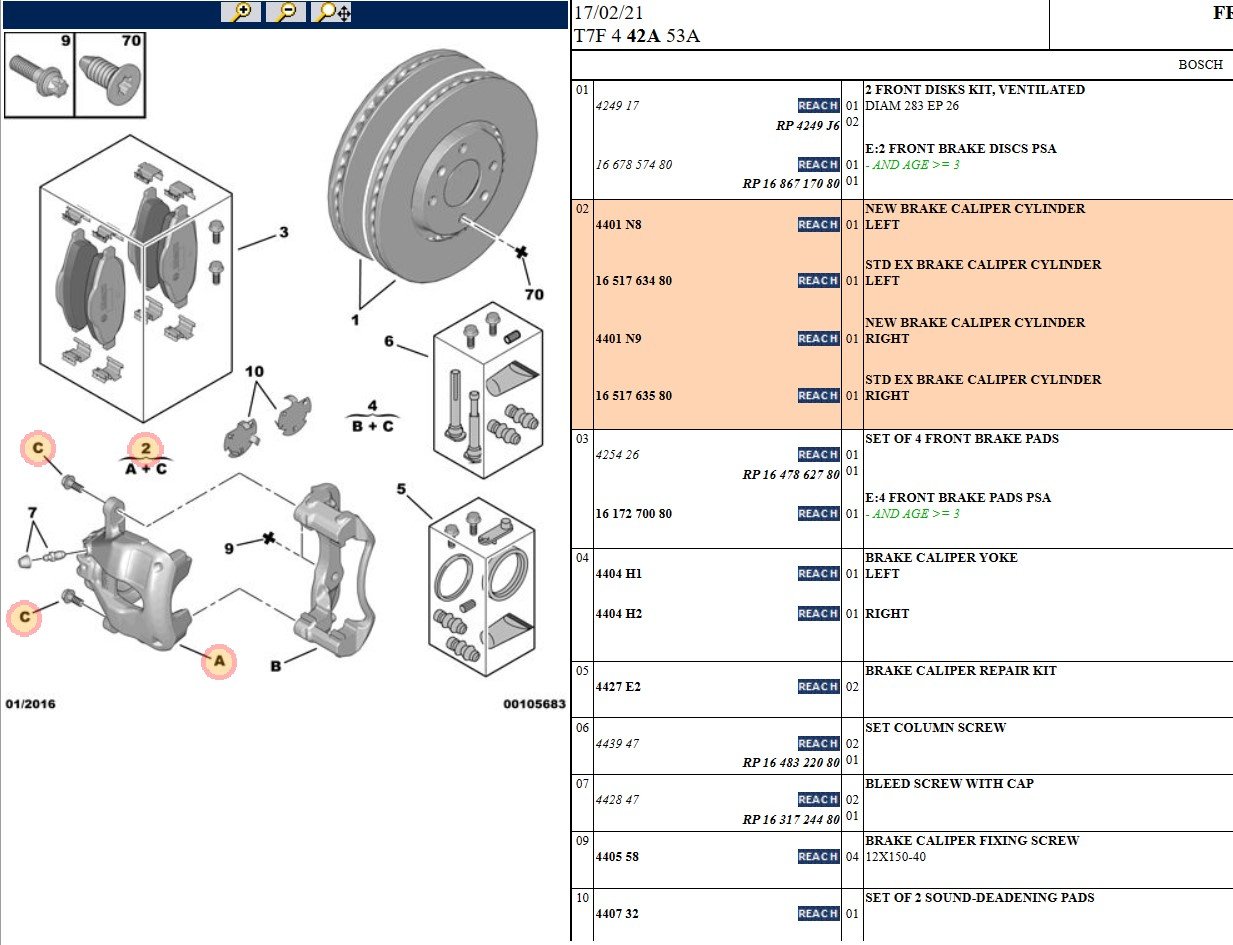

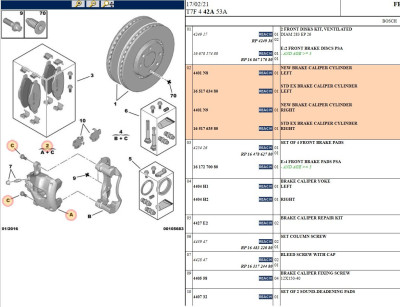

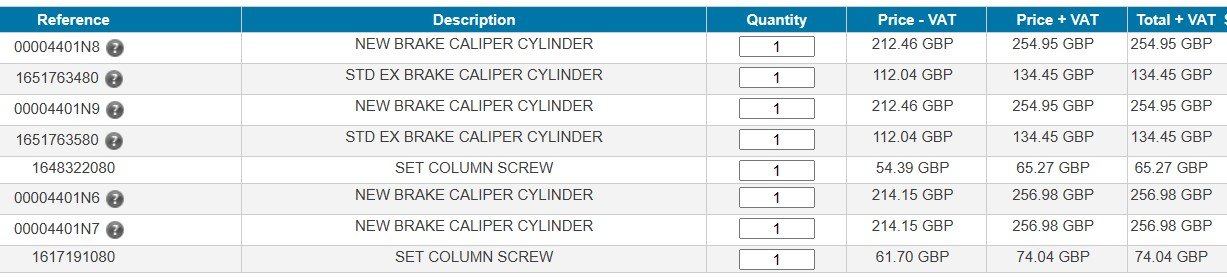

Vin . VF3**************[VIN obfuscated, can be read by forum staff] needing all the part numbers for the front and rear brake calipers top cover & sliding pins. Many thanks.

[wheeler]

Vin . VF3**************[VIN obfuscated, can be read by forum staff] needing all the part numbers for the front and rear brake calipers top cover & sliding pins. Many thanks.

[Gadgy]

Hi Guys

Please can someone help a scum.bag has decided to rip off the DOOR CARD SIDESKIRT of the driverside backdoor I need to know what the part number is or the part is called so.i can Tey and get a replacement its basically the silver strip.at the bottom.of the car door can someone please help

[c16rkc]

Hi Marc,

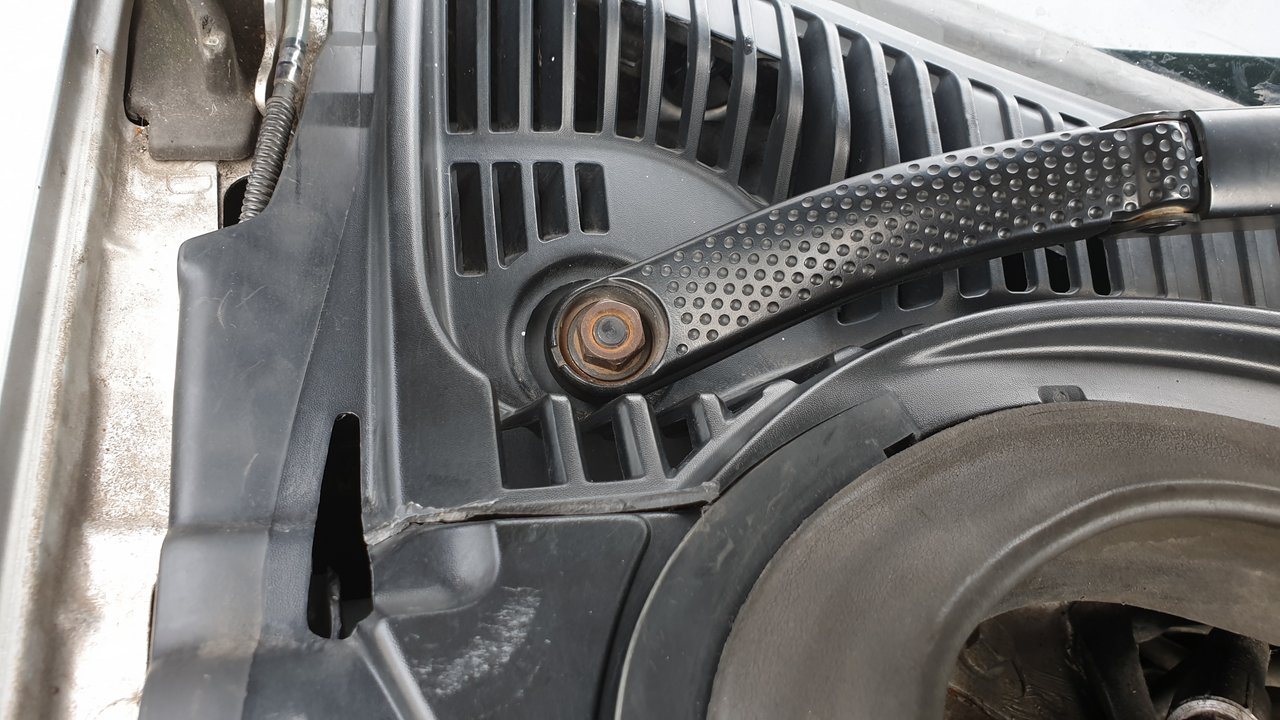

Would I be able to have the Citroen C5 X7 part number for the wiper arm nut covers please? The bit missing in this photo:

Actually the part number and price for the scuttle panel cover would be great too please - as mine is smashed and falling apart

[GiveMeABreak]

Hi Guys

Please can someone help a scum.bag has decided to rip off the DOOR CARD SIDESKIRT of the driverside backdoor I need to know what the part number is or the part is called so.i can Tey and get a replacement its basically the silver strip.at the bottom.of the car door can someone please help

Please see post one of this thread...

[GiveMeABreak]

Hi Marc,

Would I be able to have the Citroen C5 X7 part number for the wiper arm nut covers please? The bit missing in this photo:

Actually the part number and price for the scuttle panel cover would be great too please - as mine is smashed and falling apart

Hi Chris,

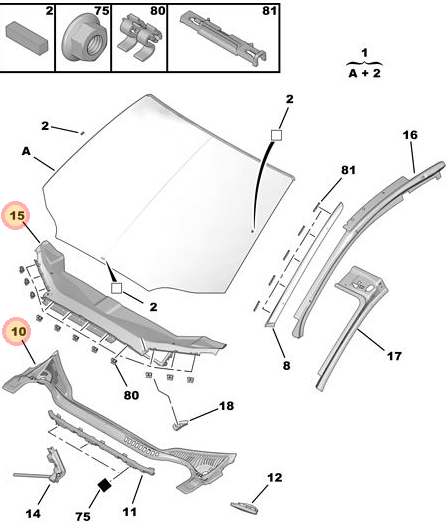

(10) Cowl Air Intake Grill, part: 8251CY, £206.89
(15) Windscreen Lower Crossmember, part: 7140N0, £508.67

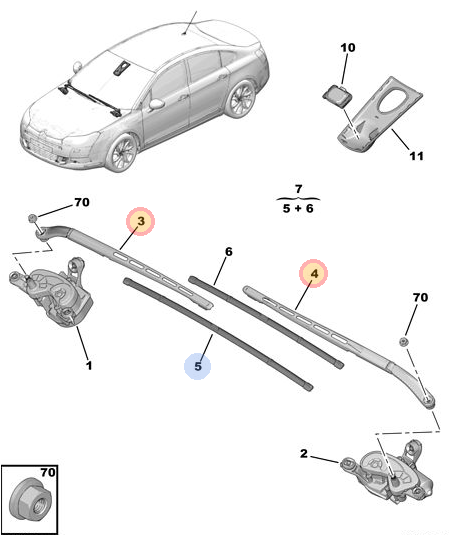

Wiper

Just checked and there are no covers on these Chris. I've put the wiper arms here in case though.

(3) Window Wiper Blade Holder, Right, part: 6429EX, £65.58
(4) Window Blade Holder, Left, part: 6429EZ, £61.68

[Huskyxantia]

Can i please have part numbers for front & rear brake pads for my 308cc , vin number VF3**************[VIN obfuscated, can be read by forum staff] many thanks

[GiveMeABreak]

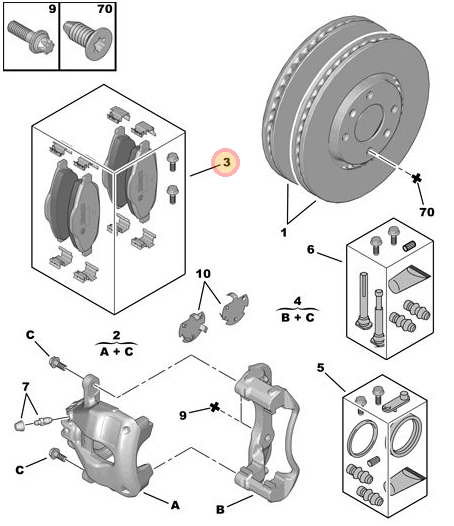

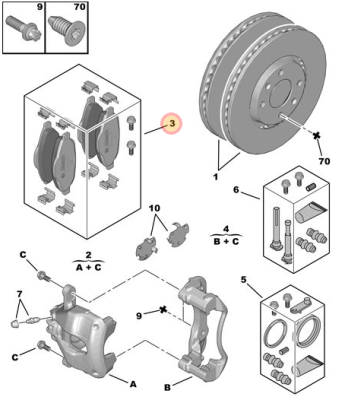

Front Pads

(3) OEM Front Pad Set, part: 1647862780, £122.32
Cheaper Set, part: 1617270080, £45.06

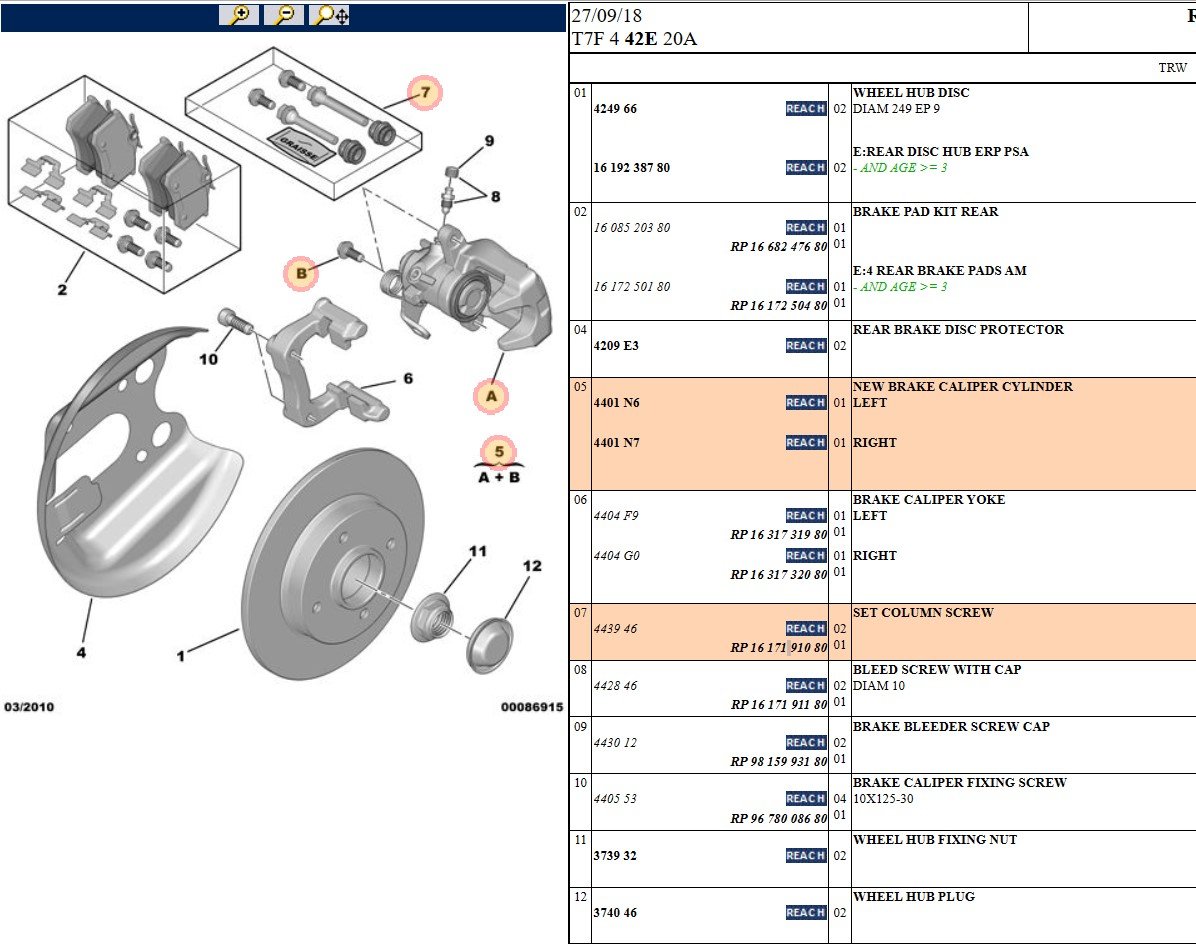

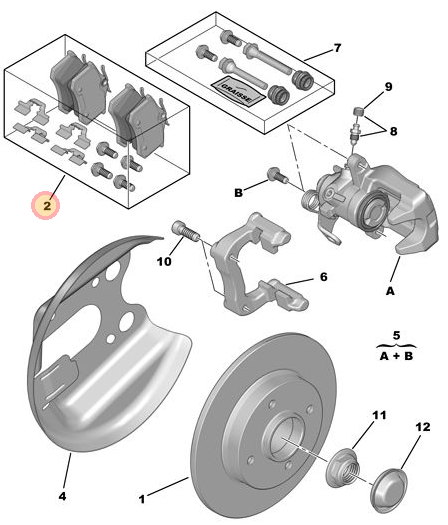

Rear Pads

(2) OEM Rear Pads, part: 1668247680, £82.70
Cheaper Pads, part: 1617250480, £22.19
