Citroen, DS Automobiles and Peugeot Official Part Number Requests

[GiveMeABreak]

Do you still need the part numbers?

The Front Pivot Replacement is already there for the DW10CTED4 which is the same procedure for the 2.2 (DW12C):

viewtopic.php?t=65718

Rear:
viewtopic.php?p=763127#p763127

[darbuck]

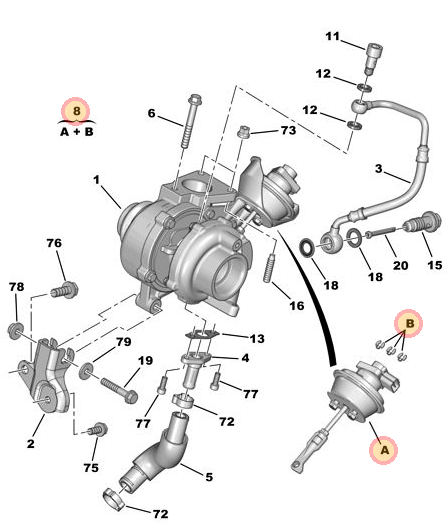

Hi Marc, can you give me the part number for the turbo actuator position sensor for my C5 x7 please?

[GiveMeABreak]

(8) Control Capsule Turbo Kit, part: 0375P0 (No Longer Available), £205.70

The turbo position copy sensor consists of a potentiometer located on the turbo control capsule.

[darbuck]

Thanks Marc

[jakuboz]

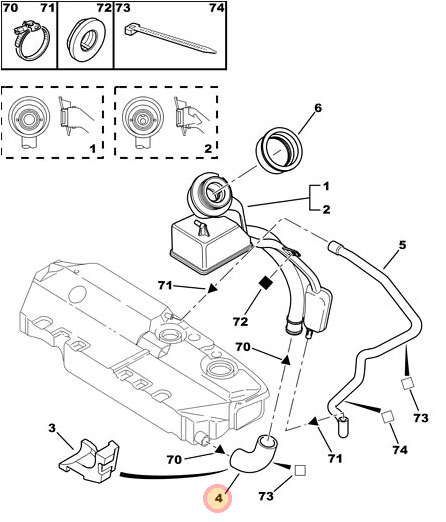

Hello, can I please have a part number (dimensions if available, as I think this might be unobtanium) for an L-shaped rubber connector that connects fuel tank with the filler neck?

[GiveMeABreak]

Item (4) Filler Pipe Joint, part: 1505YX, £76.86 (Still showing available), but no dimensions.

If other item, let me have the item number from the diagram.

[jakuboz]

It is 4. Thank you.

[darbuck]

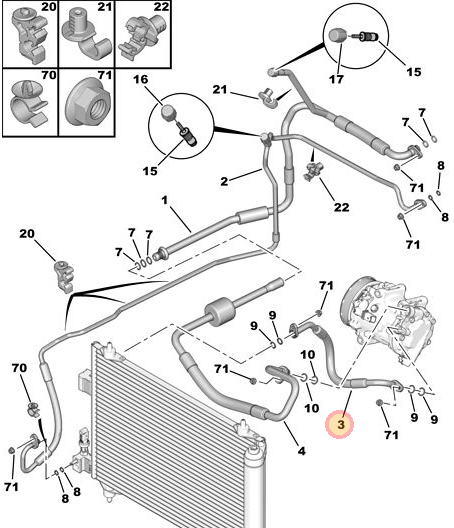

Hi Marc can you give me part numbers for the compressor to condenser hoses for my C5 x7 please.

[GiveMeABreak]

(3) Refrigerant Pipe, part: 9677930480, £149.70
(4) Refrigerant Pipe, part: 6477E9, £139.56

[darbuck]

Hi Marc I need number 4 aswell please they're both perished

[GiveMeABreak]

^ Done ^ (see previous Post)

[darbuck]

Thanks Marc your a star

[Double Helical]

Hi Marc,

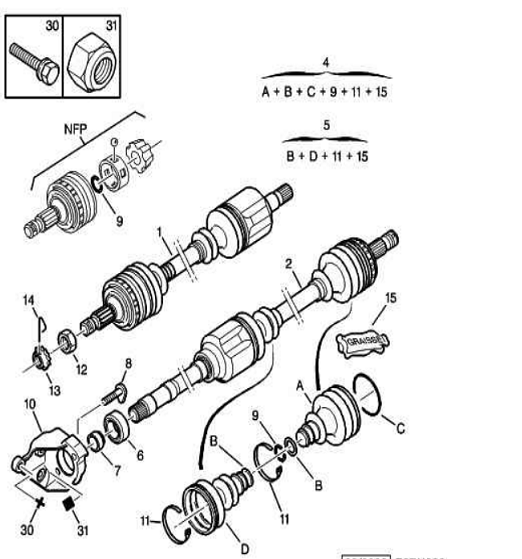

Could you please find me part numbers for left and right drive shafts, and inner and outer CV joints for a citroen XM 1993 2.0i turbo Vin VF7**************[VIN obfuscated, can be read by forum staff]?
I would really like to replace just the CV joints but so far my web searches have only turned up outer joints. and the information on inner ones is confusing, so i may have to replace the drive shafts.
thanks
Ash

[GiveMeABreak]

Unfortunately, live Citroen data no longer list anything under Driveshafts for the XM - and by that I mean no diagrams and no parts! To get the the following, I had to use the old offline Citroen data from 2014:

Item (1) Left Driveshaft, part: 3272N0 (Marking 8GN91 (8KN50) 8GN55 8HN31 8JN41 8KN54 8GN53 8JN77 8JN75 8JN45 8JN44 8JN46 8KN50) which was the part number for a 'New' part back in the day.

The Exchange part for the above Left unit was: 32725N.

Item (2) Right Driveshaft New was part: 3273T6 (Marking 8JN40 8JN43 8JN42 8JN49 (8KN51) 8GN54 8JN78 8HN32 8GN56 8KN55 8JN76 8KN51).

The Exchange part number was part: 32736P.

[Double Helical]

Thanks for your prompt response Marc.
Ash
