Citroen, DS Automobiles and Peugeot Official Part Number Requests

[Huskyxantia]

Brake Clutch Slave Master Cylinder Pipe Connector Clip Seal

[GiveMeABreak]

£155.69

What other vehicles was it fitted to?

EDIT

According to an Ebay vendor they are also fitted to:

Citroën Berlingo B9 2008-2020
Citroën Berlingo Multispace B9 2008-2020
Citroën C-Elysee 2016-2020
Citroën C1 2005-2020
Citroën C3 MK2 MK3 2009-2020
Citroën C3 Picasso 2013~up
Peugeot 107 2012-2014
Peugeot 108 2014-2020
Peugeot 308 MK2 LB 2013-2020
Peugeot Grad Raid 2008-2020
Peugeot Partner 2008-2020
Peugeot Partner Tepee 2008-2020
Peugeot Ranch 2008-2020
Toyota Aygo 2005-2020

Does this ring true? If so, a larger pool of S/H ones has opened up.

As from the diagram I supplied for your vehicle, you can see there are different types of unit fitted to the same vehicle according to specification and build date - So the same is likely with other listed models. I suggest you just search on the part number and if it looks the same and they've specified the specific part, you should be ok, else you should be able to return it. But beware there are also a load of Chinese parts that may come up that look nothing like the original.

Peugeot

Citroen

[GiveMeABreak]

Brake Clutch Slave Master Cylinder Pipe Connector Clip Seal

Ok so that helps.

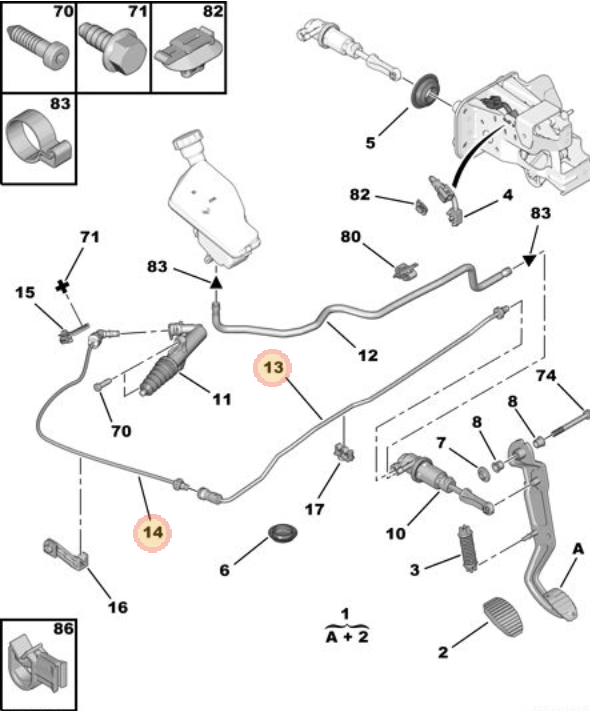

No is the answer, these look to be the connections on the declutching control pipes and are part of the complete pipe assembly:

(13) Declutching Control Pipe, part: 2056T0, £47.90
(14) Declutching Control Pipe, part: 9678377780, £37.84

[Huskyxantia]

Cheers marc , i thought it would be a complete piece , Have a great christmas & all the best for 2025, & thanks for all your help this yr.

[GiveMeABreak]

Thanks, you too.

[sar77]

Hello
2014 Citroen C4 Picasso blueHdi 2.0 110 kW (diesel), VIN: VF7**************[VIN obfuscated, can be read by forum staff].
Can I get vehicle factory build sheet.
Thank you in advance.

[508c5]

(5) Air Intake Throttle Valve Housing, part: V867527880, £468.65

Good day,

Are you sure this diagram represents the situation for the 165BHP engine ?

for sure it is correct for the 156 BHP engine (i've replaced throttle bodies on it), but when i worked on the engine lately, on a Picasso c4 (which allows no visibility down there) i noticed that there is some kind of an "upright" metallic sort of pipe to with the rubber hose connects at the throttle's inlet side - in this diagram (and in the actual throttle, the inlet part is a relatively wide plastic one). I regret that I didn't bother to take a picture or use the endoscope to check this out.

[GORAX]

Hello, I need the part number for the UREA injector and wiring harness for my P2048 problem.

VF7**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

Hello
2014 Citroen C4 Picasso blueHdi 2.0 110 kW (diesel), VIN: VF7**************[VIN obfuscated, can be read by forum staff].
Can I get vehicle factory build sheet.
Thank you in advance.

Hi

Please check your private messages, I'll provide your build sheet there in a few minutes.

[GiveMeABreak]

Hello, I need the part number for the UREA injector and wiring harness for my P2048 problem.

VF7**************[VIN obfuscated, can be read by forum staff]

(22) UREA Injector, part: 9801187080, £203.38

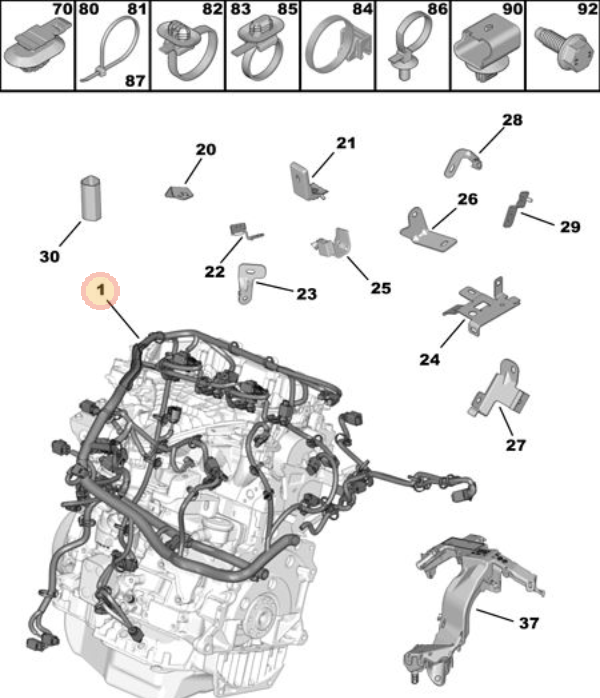

As for the wiring for the Urea Injector, I can't advise as to which electrical harness this is incorporated into - it could be several as the harnesses are complete. You'll have to get advice from your dealership as to which harness this is part of, so I am providing the main harnesses here for reference only.

(1) Main Harness, part: 1612026680, £2380.63
(5) Additional Main Harness, part: 9810156980, £634.68

(1) Engine Wiring Engine Electric Harness, part: 9806852980, £629.93

[GiveMeABreak]

(5) Air Intake Throttle Valve Housing, part: V867527880, £468.65

Good day,

Are you sure this diagram represents the situation for the 165BHP engine ?

for sure it is correct for the 156 BHP engine (i've replaced throttle bodies on it), but when i worked on the engine lately, on a Picasso c4 (which allows no visibility down there) i noticed that there is some kind of an "upright" metallic sort of pipe to with the rubber hose connects at the throttle's inlet side - in this diagram (and in the actual throttle, the inlet part is a relatively wide plastic one). I regret that I didn't bother to take a picture or use the endoscope to check this out.

The parts and part diagrams I supply are for the specific vehicle that you provide the VIN for - so just for reference, I don't re-use diagrams or part numbers from other vehicles. This is the diagram for the VIN you provided. There may well be variations / design changes for different engines, but this is for the C4 PICASSO / C4 SPACETOURER (B78) FAMILY SALOON 1.6 THP 16v 163 (EP6FDT) AUTO GBOX 6-SPEED STT that you specified.

[Micko]

Can i please get the parts numbers for

Right side driveshaft
Left side driveshaft
Right side driveshaft seal
Left side driveshaft seal

The car i a 2016 c4 Grand picasso 2.0 bluehdi with aet6 gearbox. Lefthand drive.

Vin number is
VF7**************[VIN obfuscated, can be read by forum staff]

Thanks

[RichardW]

Can i please get the parts numbers for

Right side driveshaft
Left side driveshaft
Right side driveshaft seal
Left side driveshaft seal

The car i a 2016 c4 Grand picasso 2.0 bluehdi with aet6 gearbox. Lefthand drive.

Vin number is
VF7**************[VIN obfuscated, can be read by forum staff]

Thanks

Prices quoted are for UK dealers, inc VAT at 20%.

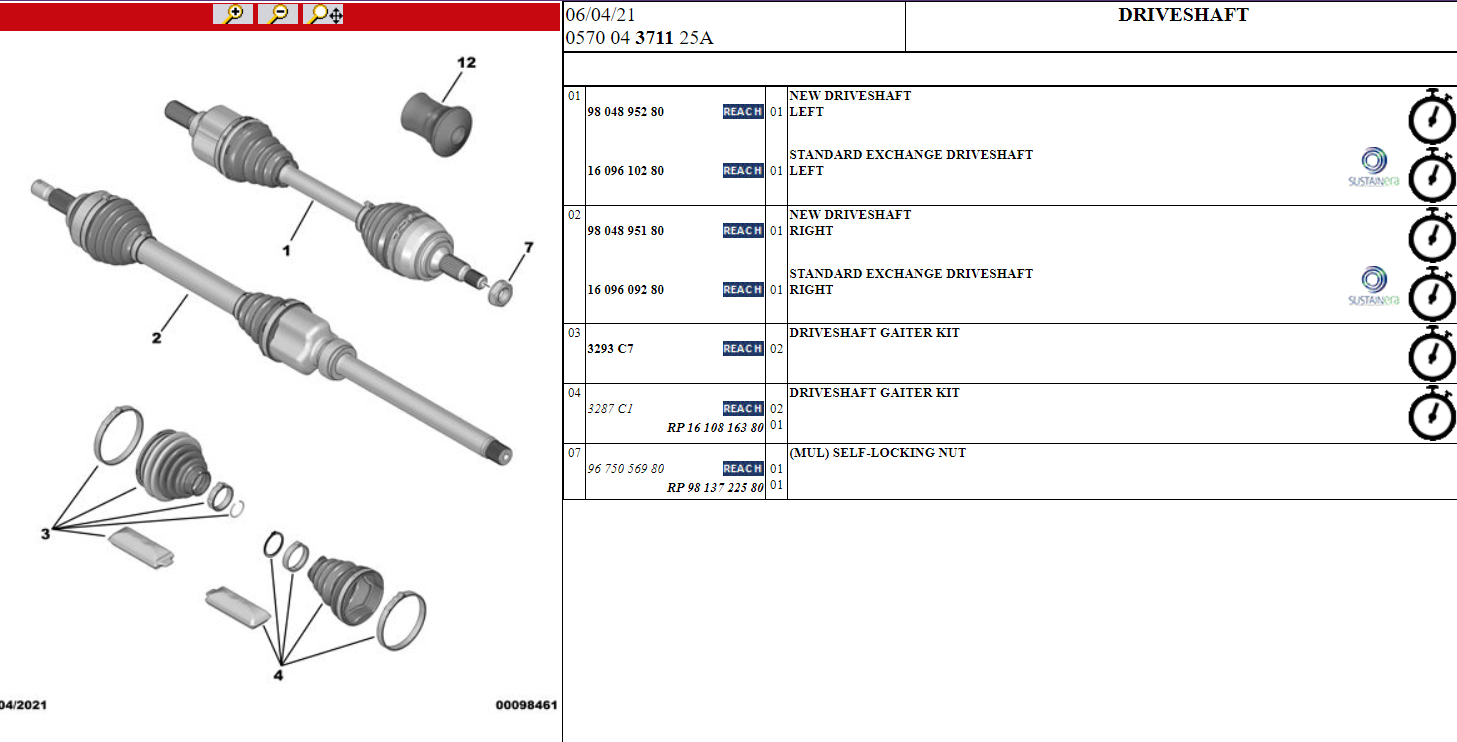

Driveshafts:

Left:
98054895280 (new) £536.23
1609610280 (exchange) £321.95

Right
98054895180 (new) £536.23
1609609280 (exchange) £339.84

New shafts and the Left exchange one carry a £72 each surcharge for return of the old item. No charge on the Right exchange - they obviously don't want that back!

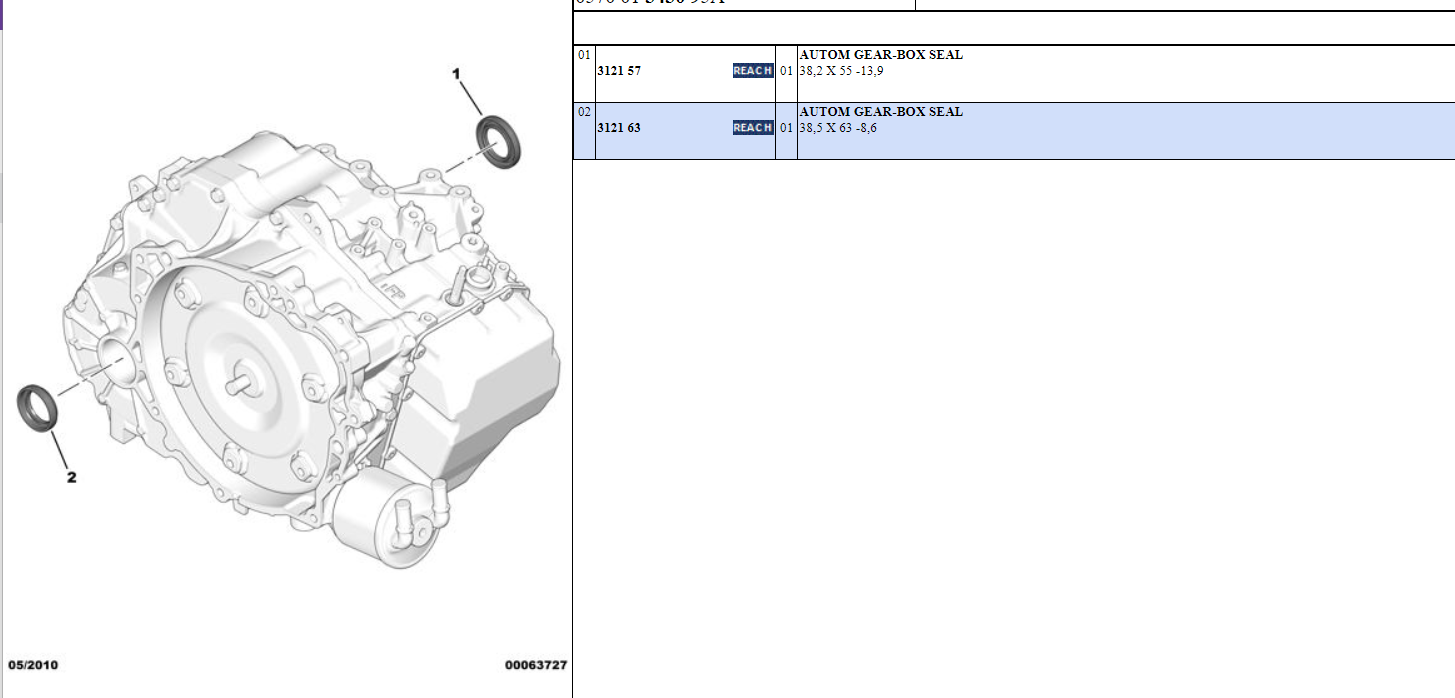

Seals

Left - 312157 £28.57
Right - 312163 £28.28

The diagram gives the sizes of these seals.

Oil - 9734R7 - £64.61 (probably per litre. Listed as JWS 3324)

[Micko]

Thanks

[PaulC5]

Please could you provide the part numbers for the front and rear wiper blades for our 2019 308SW
The correct VIN is VF3**************[VIN obfuscated, can be read by forum staff] (I previously got it wrong).
Thank you.
