Citroen, DS Automobiles and Peugeot Official Part Number Requests

[mickthemaverick]

Ok thanks Marc sorry about wrong post!! Brain fade setting in. At the moment that side displays the fuel gauge up the edge and the cruise control setting next to it which is blank when not in use. I'll investigate further in the menus, I did have a look but not thoroughly!! Thanks again Marc.

[trollkarlen]

VIN: VF3**************[VIN obfuscated, can be read by forum staff]

For my car is there any oil that can be changed in the rear electric engine/gear, in that case which oil to use ?
Any other input on maintenance for the rear drive unit is also appreciated.

[GiveMeABreak]

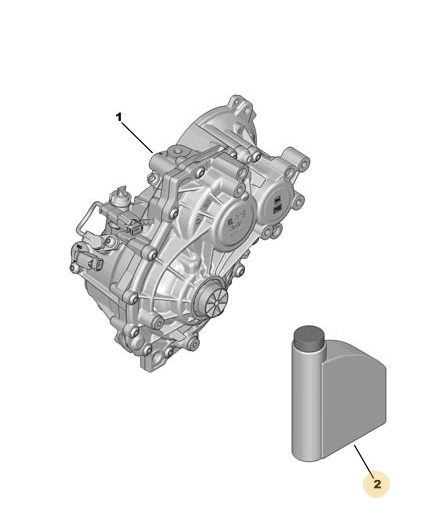

The Electric Reduction Gear Oil (2) is BOT 448, part: 1656247880, £51.92 (1 Lt).

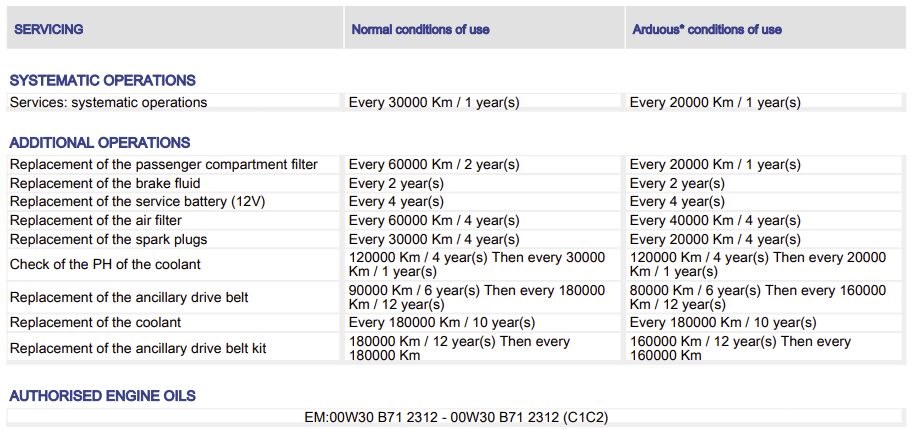

Servicing Operations:

Click to Zoom

There's nothing specific shown in relation to the Hybrid Elements, but I wouldn't bother doing any work on this area until you have had the recall work done that I've already highlighted concerning the replacement of the Traction Battery, just in case. They are very funny about outside intervention on systems....

[trollkarlen]

Thx för the info and the heads up then ill wait until after recall is done.

[trollkarlen]

VIN: VF3**************[VIN obfuscated, can be read by forum staff]

Do you have access to the color codes in the parts catalog also?
Needs both the roof(black) and the normal color(some white color).

[GiveMeABreak]

Your Body Colour Code is: KWE - PEARLESCENT WHITE PAINT.

Roof: Black Pearl Roof (no colour code as these are not painted, but manufactured plastic).

[vnava]

Is it possible to share the servicing operations and intervals recommended for my vehicle according to the manual parts specifications?

I'm also trying to understand if a need to change the fuel filter.

The VIN is: VR3**************[VIN obfuscated, can be read by forum staff].

Regards!

[GiveMeABreak]

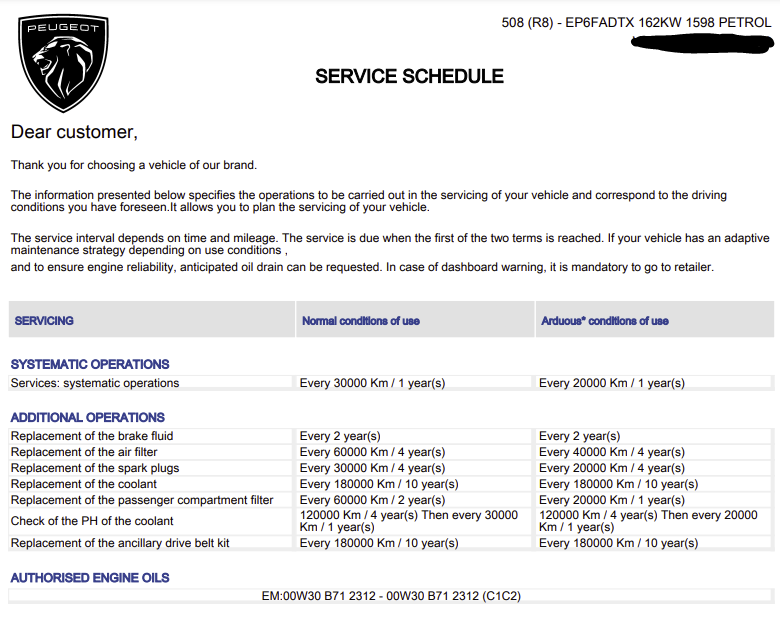

Here you go, VIN blacked out:

Click Image to Zoom

There's nothing specific regarding the fuel filter shown, but the replacement will depend on each vehicle's age and mileage, as an additional operation which the dealer would normally inform you of.

[Mexico14]

Could I request a part number for engine oil cooler gasket please?

[GiveMeABreak]

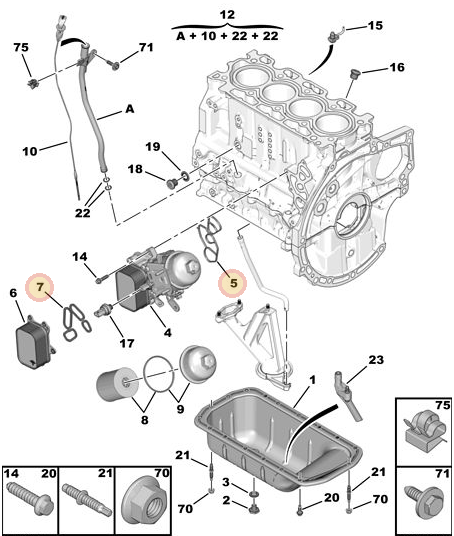

(5) Engine Oil Filter Body Seal, part: 9804281880, £54.62
(7) Seal, part: 9804338480, £33.01

[Daibach]

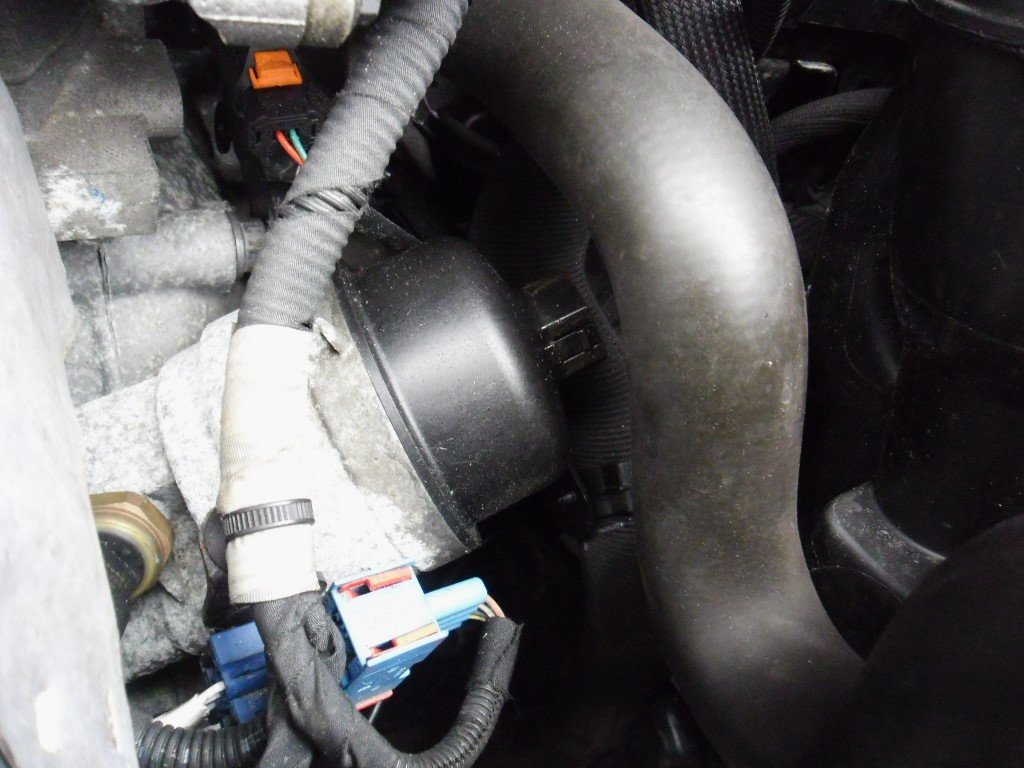

Hi Marc, Can you help with this mystery please. I believe it is the oil filter cover on my car, but it seems to have an electrical connection on top. However I can't find any loose ends of wiring harness that should plug in to it. My vin # is VF7**************[VIN obfuscated, can be read by forum staff]. I've just spotted a reply you have just done to Mexico14 which might show the item (Item 9 possibly), but no signs of any electrics. Thanks.

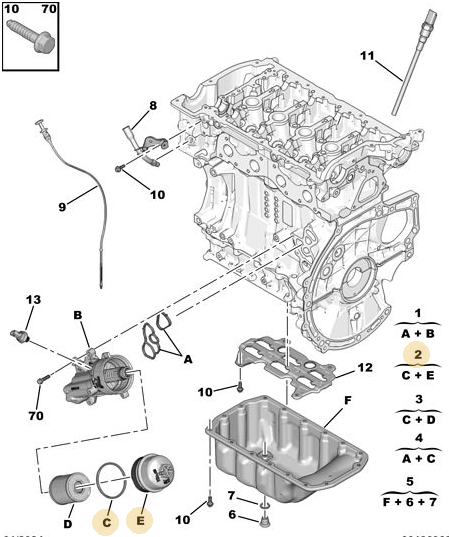

[GiveMeABreak]

There's no electrical connection - it's just the oil filter cover and the bit on top is just a moulded nut type thing for rotating, but there are no electrical connections there.

[trollkarlen]

Your Body Colour Code is: KWE - PEARLESCENT WHITE PAINT.

Roof: Black Pearl Roof (no colour code as these are not painted, but manufactured plastic).

I called Peugeot and they have the color on the roof listed as "NOIR PERLA NERA"

So the roof is all plastic?
I have a hole though the roof thats needs fixing, its from cable to lightramp that was installed by the previous owner. So plastic that makes it a little more difficult for me

[Daibach]

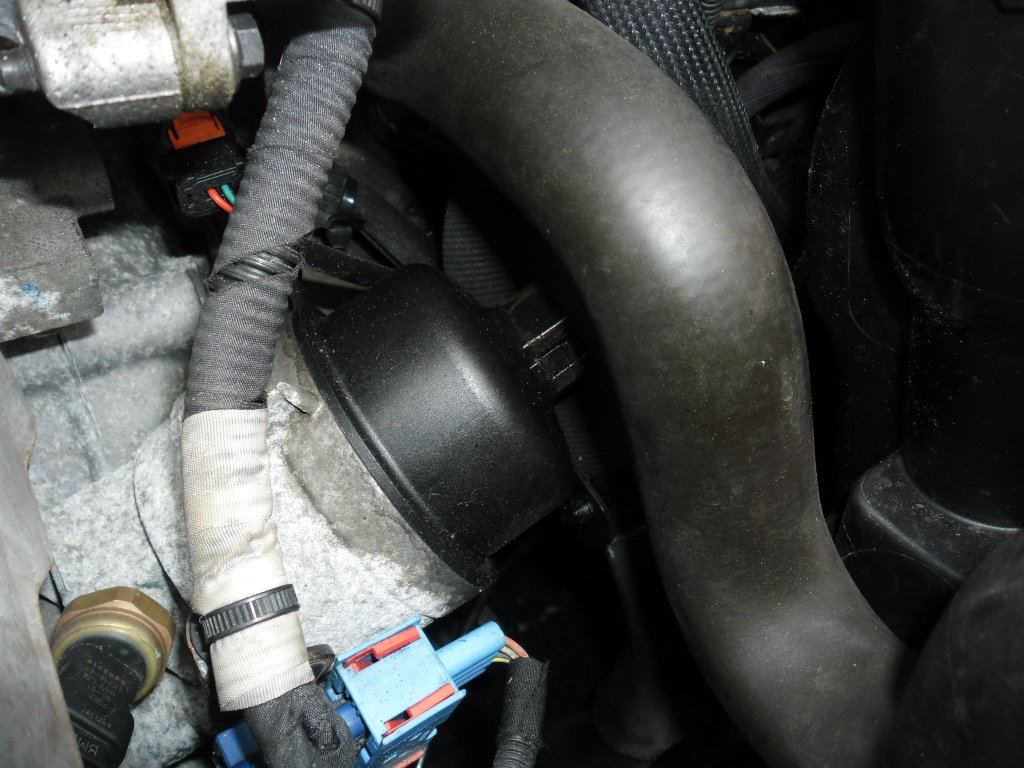

Just had another look with the sun shining in the right spot... and all I can say is my bad, your absolutely right as always, a large hexagon with a strange clip on the side,

[jordyh]

Hi Marc,

Would it be possible to locate the part numbers for both drive shafts for my B78 C4 Picasso please. Have bought via registration number before and both ends of the drivers side have different numbers of teeth!

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

Much appreciated as always.
