Citroen, DS Automobiles and Peugeot Official Part Number Requests

[trollkarlen]

(2) Number Plate Lamp, part: 9815226680, £20.36
(10) Bulb, part: 6216A1, £2.16

Thanx for a super service
I need to check but i think its LED on my car but maybe its after market lights.

[GiveMeABreak]

Yes, someone has changed them for LEDs, the above are original bulbs.

[biohead]

I'm looking to see what PN was fitted to this car at build:
DS7 VR1**************[VIN obfuscated, can be read by forum staff]
Instrument cluster

The car is scrapped, and I'm looking to buy the clocks - but the yard only disassembles after buying, with a restock fee if the part isn't needed.

[GiveMeABreak]

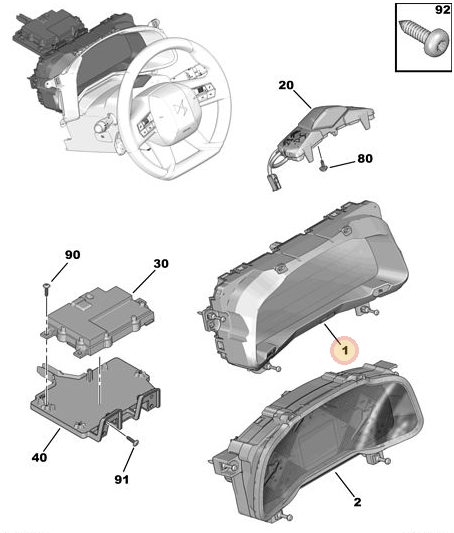

Ok, so the original part number for the build date of your vehicle for the instrument cluster was:

(1) Dashboard Instrument Panel, part: 9836548380, £945.79

However it has been replaced with an updated part number: 9844735980, £1031.80

So you have both the original fitted one and the replacement part numbers.

[danlat1415]

Please could you find the part number ;
Turbo boost position sensor

It is possibly 9815218180

VIN - VF7**************[VIN obfuscated, can be read by forum staff]

Also, was there a common fault/recall on that?
Thanks

[GiveMeABreak]

The sensor is internal to the turbo and not sold separately. '9815218180' is not showing as a part number for this vehicle.

Your turbo is a honeywell with part: 0375P7, £1707.54 for a new one
or part: 0375P8 for an exchange turbo, £916.88

[trollkarlen]

Yes, someone has changed them for LEDs, the above are original bulbs.

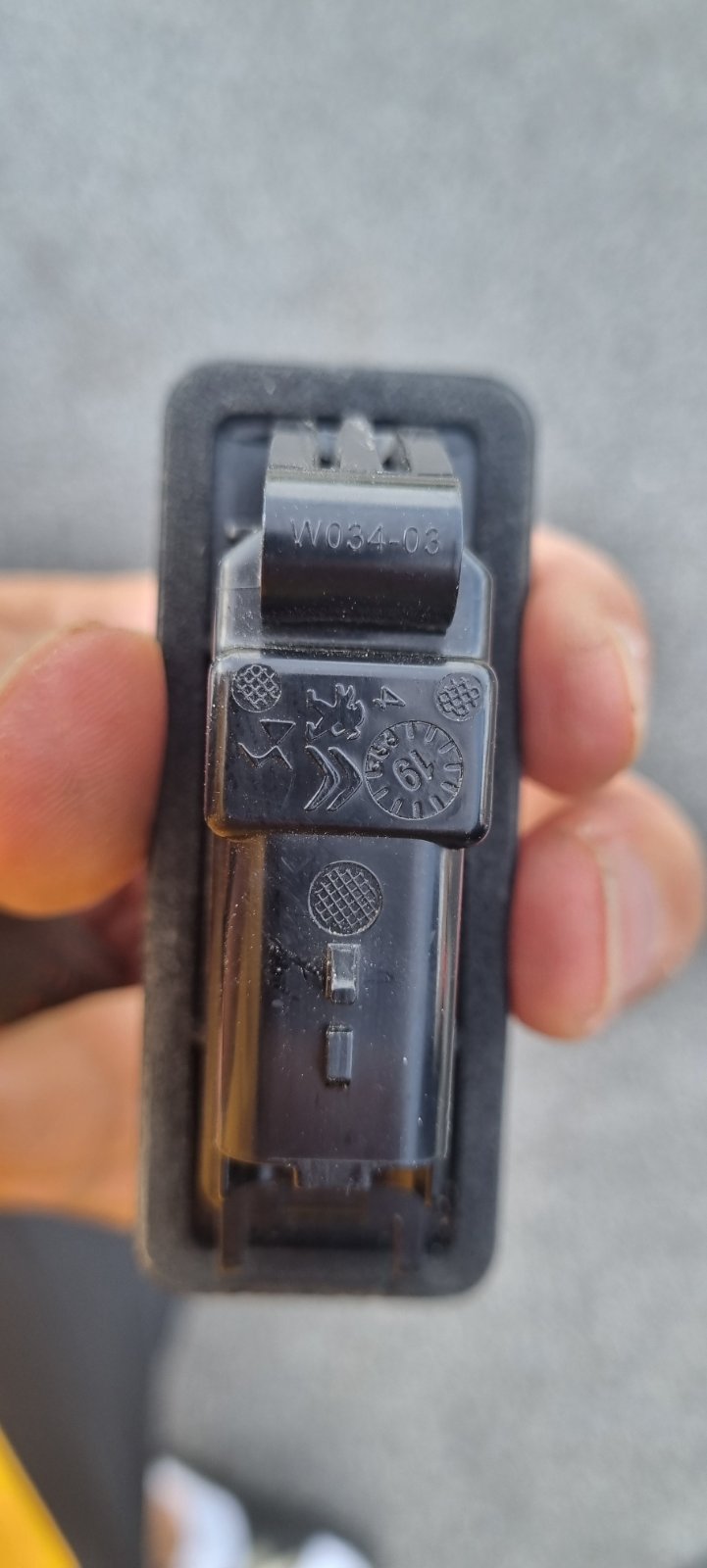

I took them out and they where LED but they look original, had a Peugeot stamp on the back and everything. Can it be different configurations?

[GiveMeABreak]

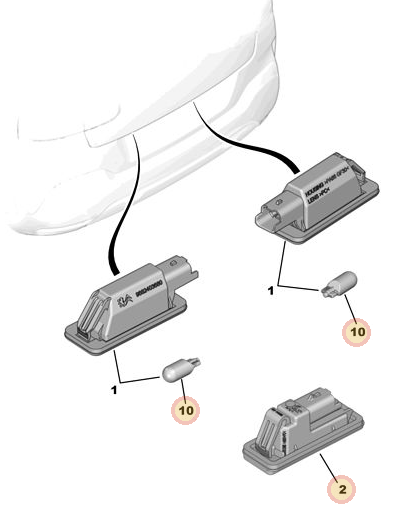

@trollkarlen: Don't panic, there are 2 types of units, one with a holder and conventional bulbs and the second one (2) that is a combined unit with LED that has to be changed as a whole.

So the part number is correct as I provided in the last post with the diagram, just ignore the bulbs as they are only relevant for the holder type (1).

Sorry about the confusion - I didn't see the (1) on the diagram for the other type and assumed the bulbs were for type 2 holder!

[trollkarlen]

@trollkarlen: Don't panic, there are 2 types of units, one with a holder and conventional bulbs and the second one (2) that is a combined unit with LED that has to be changed as a whole.

So the part number is correct as I provided in the last post with the diagram, just ignore the bulbs as they are only relevant for the holder type (1).

Sorry about the confusion - I didn't see the (1) on the diagram for the other type and assumed the bulbs were for type 2 holder!

Hehe, I interpreted the image/parts exactly the same as you
Thanx for the clarification!

Just for info for someone else, both the original and the LED after market plate lights from my Peugeot 2011 508 fits both the electrical socket and the hole in the chassi.

[hcanz]

Hi! Could you please send me an exploded view of the passenger side (R) door trim panel? I would need to identify a couple of parts to get their numbers. Thank you!

VIN: VR1**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

Hi

No problem:

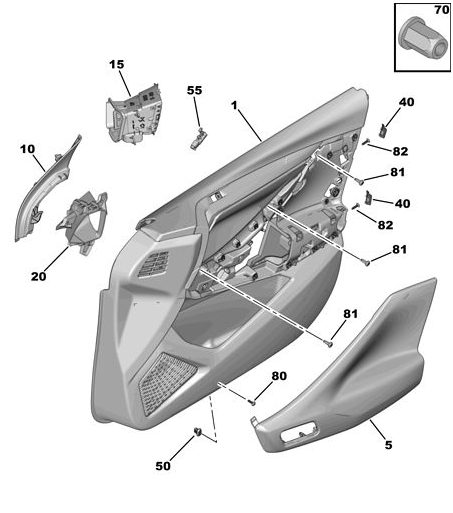

Diag A

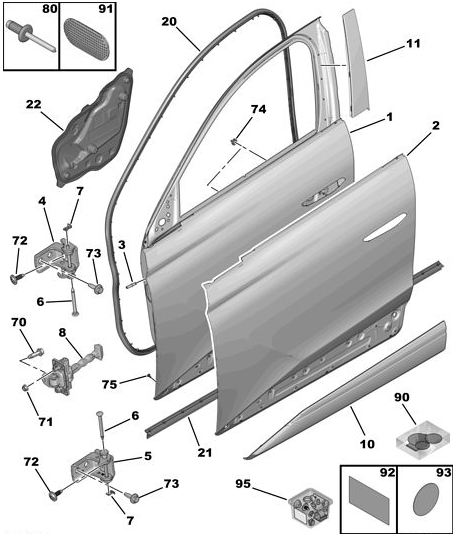

Diag B

[hcanz]

thank you so much!
I'd need the part number for parts 1, 5, 81 and 82 from Diag B if possible.
Also, I don't see it on the diagrams but do you know the piece numbers for the retaining clips to mount part 1?
thanks again!

[mickthemaverick]

Evening all,
I am considering retrofitting a rev counter to the C4. Could you determine whether the wiring loom has a connector for it and if tthis is the correct display: https://www.ebay.co.uk/itm/364760299335 ... media=COPY

If not could I have the part number for the correct display for a tacho. Thanks as always.

[GiveMeABreak]

Sure:

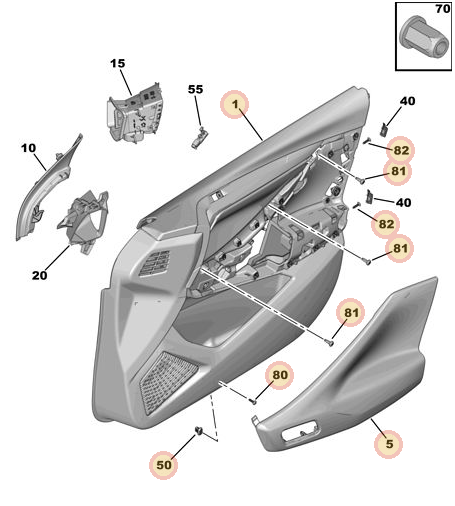

(1) Front Door Trim Pad (Right), part: 98344147XX, £1220.15
(5) Armrest of Door (Right), part: 98340003AC, £448.63
(10) Door Gusset Interior Trim (Right), part: 98309587ZD, £196.40
(50) Insert Clip, part: 8794ZA, £0.92p
(81) MUL CBLX Screw, part: 9677750480, £2.33
(82) MUL RLX Screw, part: 9675380280, £1.62

[GiveMeABreak]

Evening all,
I am considering retrofitting a rev counter to the C4. Could you determine whether the wiring loom has a connector for it and if tthis is the correct display: https://www.ebay.co.uk/itm/364760299335 ... media=COPY

If not could I have the part number for the correct display for a tacho. Thanks as always.

I think you posted in the announcements section (which I thought a bit odd), so I will remove that post.

You don't have this separate unit because the rev counter is integrated into the main instrument cluster on the left for your model. It was removed from later models as far as I can see and incorporated into the main display, Shown here as display 'B':

So none of the options are relevant to this vehicle and won't work as the data will be routed via the CAN to the main instrument cluster.

If it's not showing you may need to use the Steering Wheel controls to go into the relevant customisation menu to show it.
