Citroen, DS Automobiles and Peugeot Official Part Number Requests

[jakuboz]

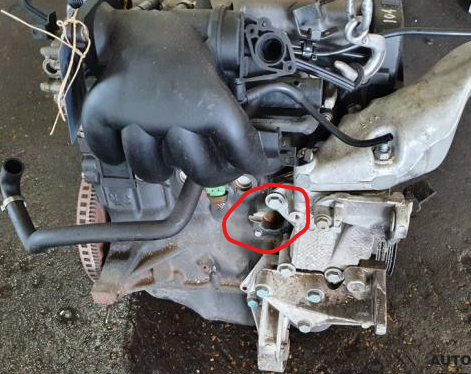

Those are definitely from the cooling system, and the most needed parts are on neither diagram.

And maybe also the hose that is not present in the photo but attaches to this plastic tee.

This might be Diag B - numbers 2, 3 and whatever 70 is?

[GiveMeABreak]

(2) Radiator Outlet Hose, part: 1351ZW (NFP)
(3) Engine Water End-Piece Gasket (DIAM 31-38 EP 3,5), part: 1343Z4, £8.81
(70) I shown upper left of the Diagram, and is a metal clip (DIAM 30 A 50 LARG 9), part: 6981L1, £2.74

[jakuboz]

Are there any more cooling system diagrams to locate the parts, or this is all there is?

[GiveMeABreak]

Only the outlet tank (above) radiator and fan assembly.

You really need to provide the correct part name or a photo from the exact vehicle, as I don't have the time to investigate for you, sorry.

[jakuboz]

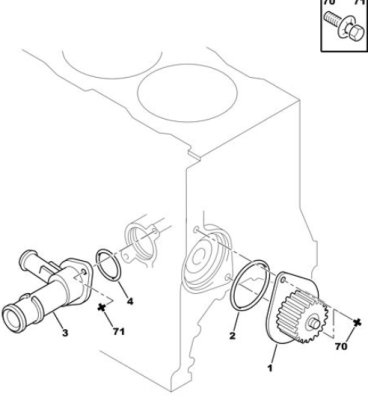

Number 3 and 4 from latest post please. And two hoses that attach to part 3.

You really need to provide the correct part name or a photo from the exact vehicle

There is no way of getting a photo from my vehicle, as there is literally no space to take a picture of at least half-decent quality.
Most of the pictures online (of the exact engine) have either poor quality, are badly cropped or have the whole part chopped/missing.

[GiveMeABreak]

(3) Engine Water Intake Tank, part: 120159 (NFP).
(4) O-Ring Seal, part: 120698

(1) radiator Water Inlet Hose, part: 1343J2
(2) Radiator Outlet Hose, part: 1351Z4 (Old Part), 1351ZW (New Part) both NFP

[Oliver53]

Hi Richard,
VIN VF7**************[VIN obfuscated, can be read by forum staff], could you please help to check the rear brake parts, including wheel cylinder and the load sensing valve? And coud you see the exact date of manufacture? The year code in VIN is 1 which is 2001 but the van was registered in 2003 and is a 244. I am confused why it's model year 2001. Thanks.

[RichardW]

Hi Richard,
, could you please help to check the rear brake parts, including wheel cylinder and the load sensing valve? And coud you see the exact date of manufacture? The year code in VIN is 1 which is 2001 but the van was registered in 2003 and is a 244. I am confused why it's model year 2001. Thanks.

RP No 9433 so it was built on 06/09/02. First Reg 01/05/03 so it sat around a bit!

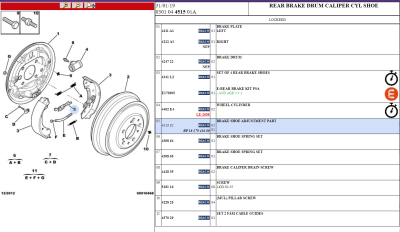

Rear brakes mechanical

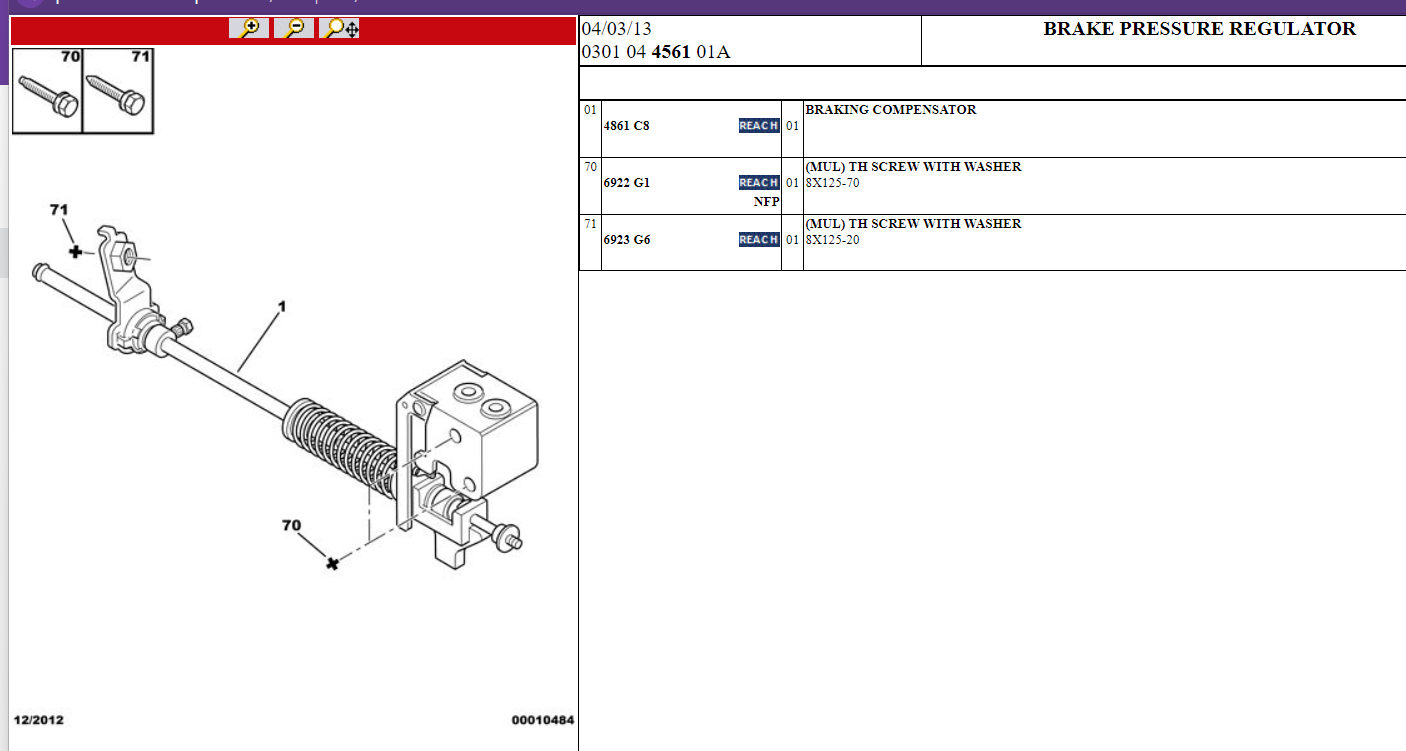

Load valve

Let us know if you want prices for any of these bits.

[Oliver53]

Hi Richard,
, could you please help to check the rear brake parts, including wheel cylinder and the load sensing valve? And coud you see the exact date of manufacture? The year code in VIN is 1 which is 2001 but the van was registered in 2003 and is a 244. I am confused why it's model year 2001. Thanks.

RP No 9433 so it was built on 06/09/02. First Reg 01/05/03 so it sat around a bit!

Rear brakes mechanical



Load valve



Let us know if you want prices for any of these bits.

Fantastic! Thanks Richard. I reckon between Sep 2002 and May 2003 it must be in the camper conversion workshop so all make sense.

[RichardW]

@jakuboz

I think it might be the heater hoses. Yours doesn't appear to have the short hose or the metal pipe (part nos 5 and 6 not listed against the VIN), just the heater hoses which connect directly to the block somewhere (item 4):

Still showing as available, and £104.82 in the UK.

[GORAX]

Hello everyone,

The vents on my car are broken. I found a replacement but I'm not sure if it will fit. My VIN is VF7**************[VIN obfuscated, can be read by forum staff]. On the website of the used parts dealer there is spare part number 967797317A with engine code BHZ. The part is from a Spacetourer.

[RichardW]

Which vent? That part number is not found on the database.

[GORAX]

https://www.ebay.de/itm/186541682231

ventilation slots

This part.

[RichardW]

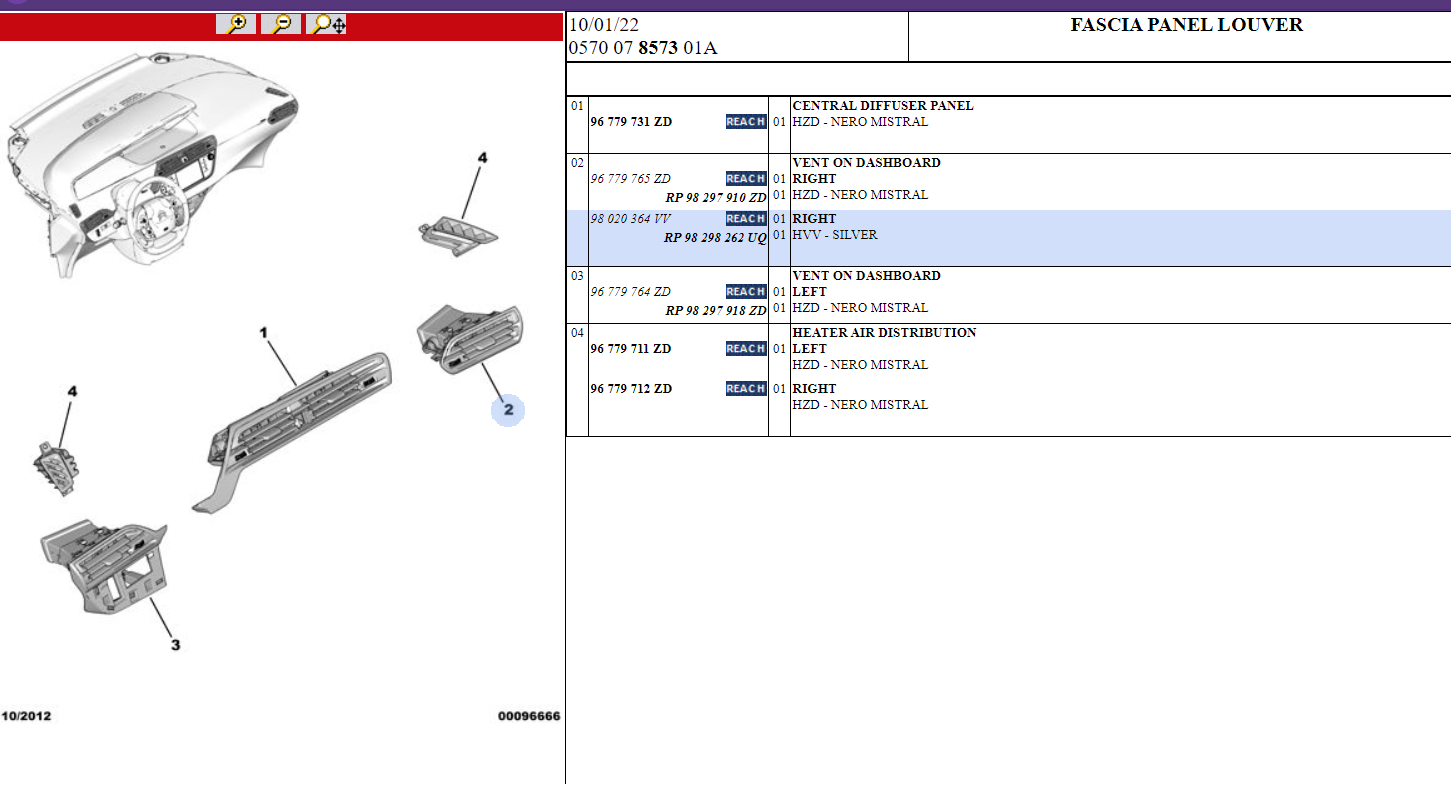

This is the part for yours:

There are 4 parts available, with a change at RP 15064 (which equates to 5th Feb 2018). I suspect that later parts will not fit earlier cars.

[Bryonyolney]

Morning!

I’m looking for 2 part numbers for VIN VF7**************[VIN obfuscated, can be read by forum staff]

1. Passenger side wing mirror casing
2. Drivers side scuttle drain cover

Hope you can help!

Bryony
