Blocked EGR

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

Tomorrow will be the test. Have booked a diagnostic check for Thursday
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

No smoke this morning but engine was very rough on first start up uneven idling almost cutting out struggled to get off the drive. Ok once started and driven , but got to work and noticed stram coming from engine bay, lifted bonnet and found the pipe from expansion bottle to rad had come off and dumped its contents over the egr and everywhere around. Pushed it back on and refilled didnt take much maybe a litre, drained a bit off snd put some more anti freeze in (OAT)Is thete a clip on this push fit pipe? It seems very easy to pull off so have cable tied and taped it on .
Cheers Rich :wink:
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Blocked EGR

Post by GiveMeABreak »

When you get a minute pop up the VIN for your latest VAN as I might have an old one and don't want to give you wrong info.

In the interim, you should have some sort of clip fastening it on - this is what I have for your old VIN - number 71:
Rich Clip.PNG
Please Don't PM Me For Technical Help

Marc
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

Pm sent Marc
Cheers Rich :wink:
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Blocked EGR

Post by GiveMeABreak »

Ok, so same VIN (but should be a 5 not an 'S' after the VF7**************[VIN obfuscated, can be read by forum staff] :-D

So this should be the engine - a DV6UTED4:
Rich EGR.PNG
Location of EGRCylinder Head and EGR
So if you don't have this engine - Panic! :-D
Please Don't PM Me For Technical Help

Marc
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

Better picture
Attachments
Last edited by RPWC on 26 Jun 2018, 17:57, edited 3 times in total.
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

Right side of engine with MAF location at end of screwdriver. Above it is cabin filter housing
Attachments
Corrected image
Corrected image
Last edited by myglaren on 26 Jun 2018, 17:27, edited 1 time in total.
Reason: Image corrected
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

Is this not the egr? Runs from intercooler into the front of rocker cover then into the turbo . Actually the pipe just in view on right is the one that goes to the turbo
Attachments
Rich 3.jpg
Last edited by myglaren on 26 Jun 2018, 17:35, edited 1 time in total.
Cheers Rich :wink:
MikeT
Posts: 4809
Joined: 11 Jun 2007, 16:17
Location: Christchurch, Dorset. UK
My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon
x 231

Re: Blocked EGR

Post by MikeT »

GiveMeABreak wrote: 25 Jun 2018, 23:04 Any lack of air intake into the system is going to cause problems with the injection ECU.


If it's the cold air intake feeding the airbox, Marc, it won't cause a lack of air. If it's leaking there, it just means the system is sucking in (warmer) air from the engine bay, rather than cool air from the front of the car.
MikeT
Posts: 4809
Joined: 11 Jun 2007, 16:17
Location: Christchurch, Dorset. UK
My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon
x 231

Re: Blocked EGR

Post by MikeT »

RPWC wrote: 26 Jun 2018, 17:17 Is this not the egr? Runs from intercooler into the front of rocker cover then into the turbo . Actually the pipe just in view on right is the one that goes to the turbo

That looks like a butterfly valve, probably the EGR "Throttle" which resides downstream of the EGR itself.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Blocked EGR

Post by GiveMeABreak »

I'm still unsure what's going on with that engine TBH Mike - the EGR location doesn't seem to correspond with where it should be on Rich's variant as per his VIN, which made me wonder if the engine has been replaced at some point and that, along with the coolant and various hoses that seem to be unclipped or missing clips is also possibly a bit of a giveaway / concern....
Please Don't PM Me For Technical Help

Marc
MikeT
Posts: 4809
Joined: 11 Jun 2007, 16:17
Location: Christchurch, Dorset. UK
My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon
x 231

Re: Blocked EGR

Post by MikeT »

Yes, I see where you're coming from, what with the coolant hose detaching, but the cold air intake is nothing to worry about much, just a crap fitment design. Though you may have overlooked the fact Rich asked for location of MAF, whereas you provided the diagram for the EGR? :D
Hopefully tomorrow's diagnostic will give some more meaningful input as to why it's running poorly, smoking and smelling.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Blocked EGR

Post by GiveMeABreak »

MikeT wrote: 27 Jun 2018, 12:14 Though you may have overlooked the fact Rich asked for location of MAF, whereas you provided the diagram for the EGR? :D

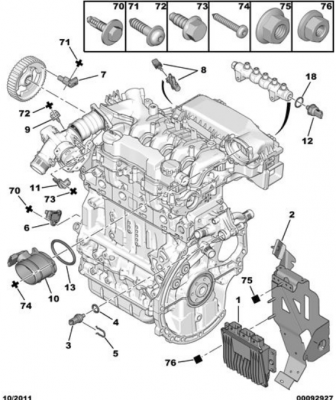

I can't see anything about the MAF request (and still can't :-D ), but this is where it the MAF is SUPPOSED to be for this engine - item 10 - which at least looks about right from the pictures :-D That's something at least!
Rich MAF.PNG
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Blocked EGR

Post by RichardW »

It's not the EGR valve, it's as Mike suggests an air doseur - not sure exactly what it does, but I suspect it works in tandem with the EGR valve to restrict fresh air flow and preferentially admit exhaust gas when the EGR logic calls for it. If it's failed closed, then it will cause all sorts of running problems!! The EGR valve, will be, as your pic shows, buried down the back of the engine. It's under the air piping (and fuel filter) under the blue screwdriver in the pic above. Extract from service.citroen showing the doseur:
Richard W
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Blocked EGR

Post by RPWC »

GiveMeABreak wrote: 27 Jun 2018, 12:25
MikeT wrote: 27 Jun 2018, 12:14 Though you may have overlooked the fact Rich asked for location of MAF, whereas you provided the diagram for the EGR? :D

I can't see anything about the MAF request (and still can't :-D ), but this is where it the MAF is SUPPOSED to be for this engine - item 10 - which at least looks about right from the pictures :-D That's something at least!

Rich MAF.PNG


That is correct Marc
Cheers Rich :wink:
