And we now have a working clutch car has moved a short distance under its own steam today... More details later...

[CitroJim]

To get the clutch hydraulics working I needed to devise a way of bleeding the system, which by its nature is sealed for life and not intended to be bled...

Luckily I had a spare set of hydraulics in stock on which I could practice a method of drilling and tapping the hexagonal connector on the end of the slave cylinder to accept a short M3 screw... This worked OK:

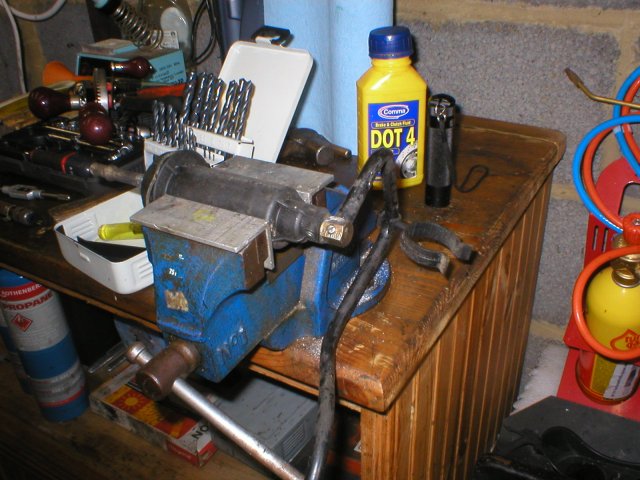

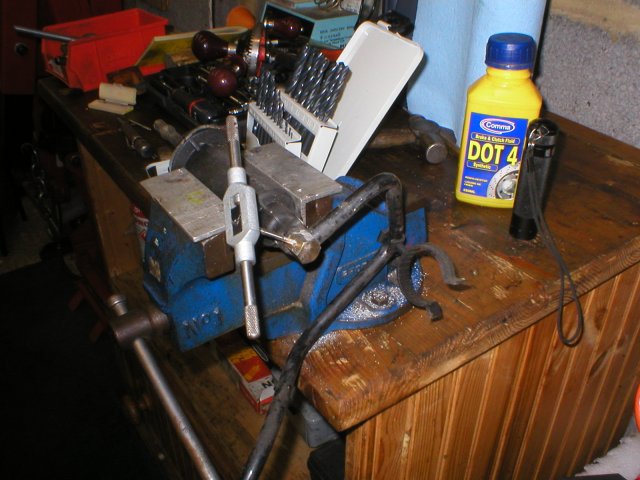

Tapping:



Bleed Screw in place:



The drilling was done using a small hand drill and a very sharp 2.5mm drill bit.

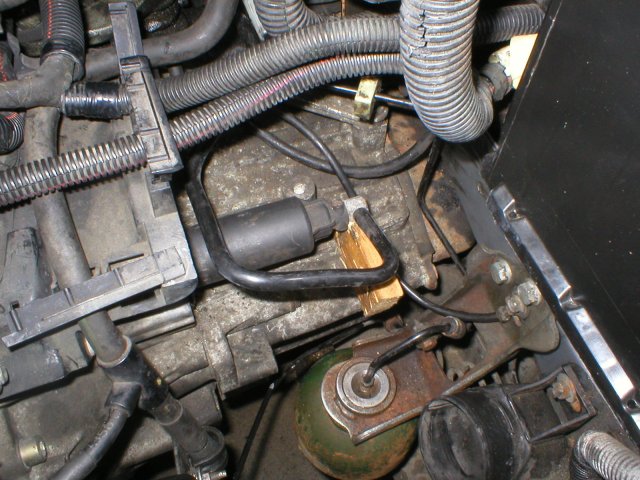

I then moved to do the same on the car... Space is tight and the end of the slave cylinder needed supporting with a block of wood:

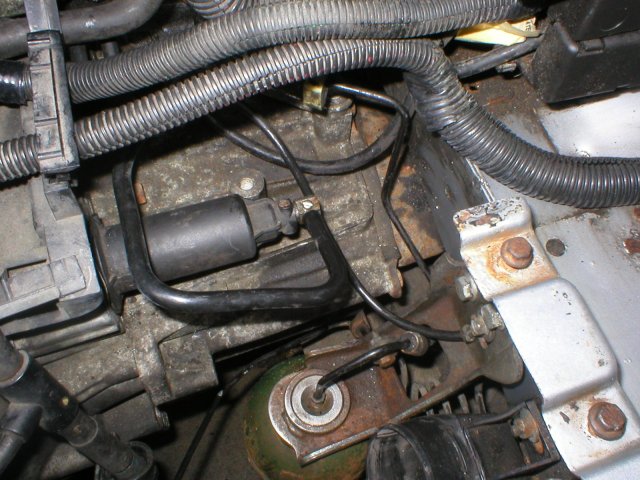

Job done:

I put a tiny O ring under the screw to ensure fluid tightness...

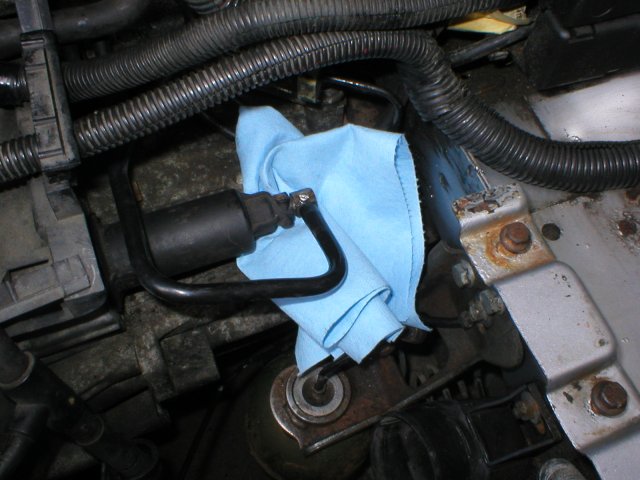

Bleeding in progress:

Use a wad of rag to catch the bled fluid

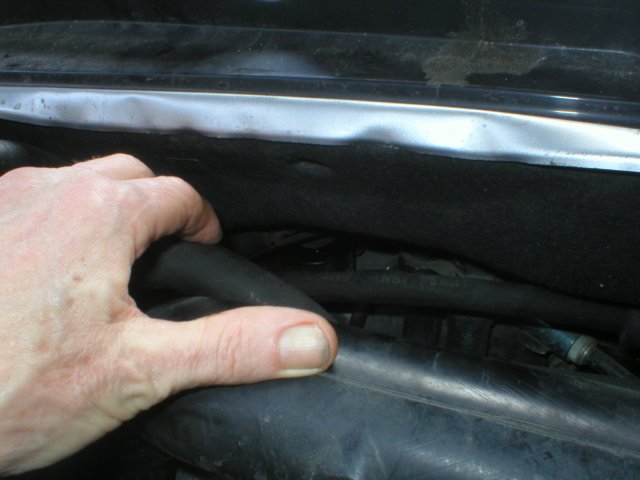

The Master cylinder needed topping up and it is a devil to get to. I lives under the bulkhead by the heater matrix connector. The lid can just be prised off and then the top-up can be managed using a funnel on the end of a piece of plastic tube..



The lid of the master cylinder has a warning on it that says that it must not be removed...

The hydraulics use ordinary DOT brake fluid and not LHM...

So, just the gearbox oil seal and then all is sorted...
