Had a rare bit of spare time today when it wasn't tipping it down to investigate the horrible noise the Xantia is making.

Shifting the ECU box meant I could just get the universal joint driver from my socket set in to release the tensioner and then remove the belt. Well, until it got wedged anyway. Ten minutes of arguing with it and I then managed to get it out from the bottom.

Hydraulic pump feels fine, alternator feels okay, tensioners both silky smooth, A/C compresser on the other hands making horrible scrapy noises and surrounded by a fine layer of metal filings. It's nice to be right sometimes. Access from in the wheel arch is actually a lot better than I expected...is it possible to replace the pully/bearing assembly with the compressor in situ?

In the meantime, I'll look up the length of belt needed for the a/c deletion to get the car back on the road until I can get it fully sorted.

I did note that the belt was quite perished on the grooves, it's dated week 22 2013 which is about when the timing belt was done if I remember right (makes sense I guess), which makes me wonder if that may be starting to show its age too...might pull the cover off and take a peek at it. If it needs doing I may as well do it while I've got things in bits anyway...I've got everything here to do it after all.

User avatar
CitroJim
A very naughty boy
Posts: 44009
Joined: 30 Apr 2005, 23:33
x 1779

Re: Zel's Fleet Blog (Xantia, 107 and "others")

Post by CitroJim »

Zelandeth wrote:is it possible to replace the pully/bearing assembly with the compressor in situ?

Yes it is but you need a special puller for the job Zel... One that looks like a flywheel puller used on small motorcycle mags back in the 60s..

I once made one up on the lathe...

I didn't quite make the threads deep enough so it worked once and then stripped...

It's not a standard size of puller and genuine ones are like rocking horse manure and expensive...

Online
User avatar
Zelandeth
Donor 2016
Posts: 3941
Joined: 17 Nov 2014, 00:36
x 447

Re: Zel's Fleet Blog (Xantia, 107 and "others")

Post by Zelandeth »

Stand by, Jim...

Photos will follow tomorrow but the organ is home...nearly killed me and.my other half, but it's home!

Decoding the serial no seemed to suggested a 1969 build date...impressive to own something that saw the moon landing...
Last edited by Zelandeth on 11 Jan 2016, 19:35, edited 1 time in total.

User avatar
CitroJim
A very naughty boy
Posts: 44009
Joined: 30 Apr 2005, 23:33
x 1779

Re: Zel's Fleet Blog (Xantia, 107 and "others")

Post by CitroJim »

Zelandeth wrote:Stand by, Jim...

Photos will follow tomorrow but the organ is home...nearly killed me and.my other half, but it's home!
Can't wait Zel, excellent :D

Online
User avatar
Zelandeth
Donor 2016
Posts: 3941
Joined: 17 Nov 2014, 00:36
x 447

Re: Zel's Fleet Blog (Xantia, 107 and "others")

Post by Zelandeth »

Well gave the thing a reasonably thorough clean today (including removing the mouse's food store from the one corner), did some electrical sanity checks before showing it power and then gave it a test run.

Results were basically exactly what I expected from something of this vintage which has been in storage for a while. Generally OK, but in need of a bit of fettling. There's a continual buzz on the audio at what sounds to be around 50Hz, and the volume varies when the Leslie speaker's rotation motor is turned on/off so I suspect the voltage is wandering. PSU will be wanting some caps changed then methinks. The 16' range for the bass pedals doesn't seem to do anything, that could be as simple as a duff switch contact or could mean that one of the outputs from the tone generator is missing. Other than that problems seem to be limited to some dirty contacts on the drawbars which is to be expected. Thankfully all the keys work and don't seem to be sticky - as I was dreading the idea of having to dismantle and service that. Likewise, the tone generator seems to be working OK.

There's a bit of water damage to the bottom of the cabinet on the one corner from the recent torrential rain where it got into the lockup, but nothing that can't be repaired.

Looking at the various date coded components tends to suggest that this is actually a 1968 model rather than 1969 one, as all the components seem to be late 67 to early 68. This model was only launched in 1968, so quite an early one.

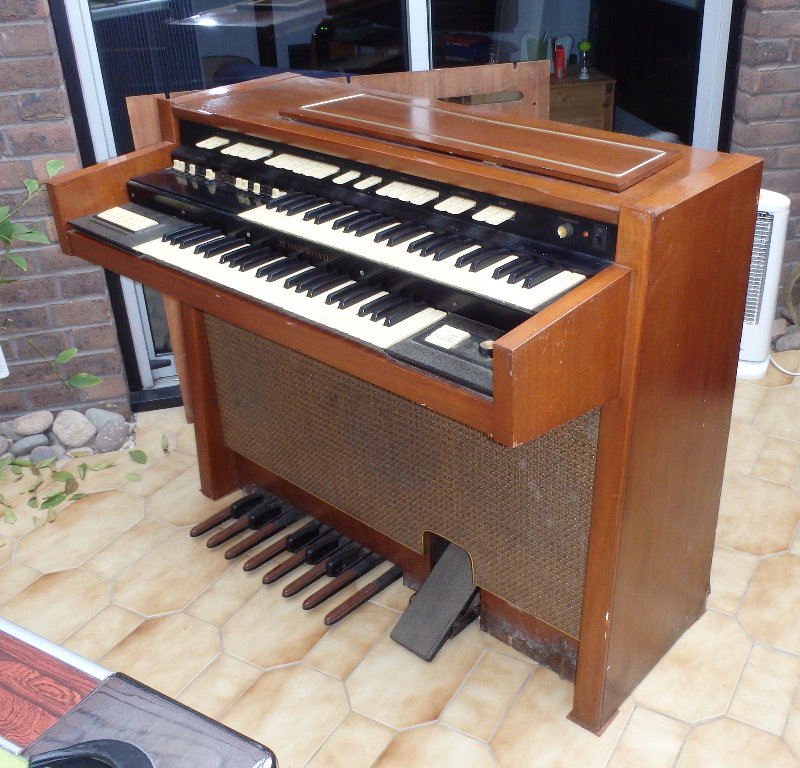

Anyway...here's what you want, Jim!

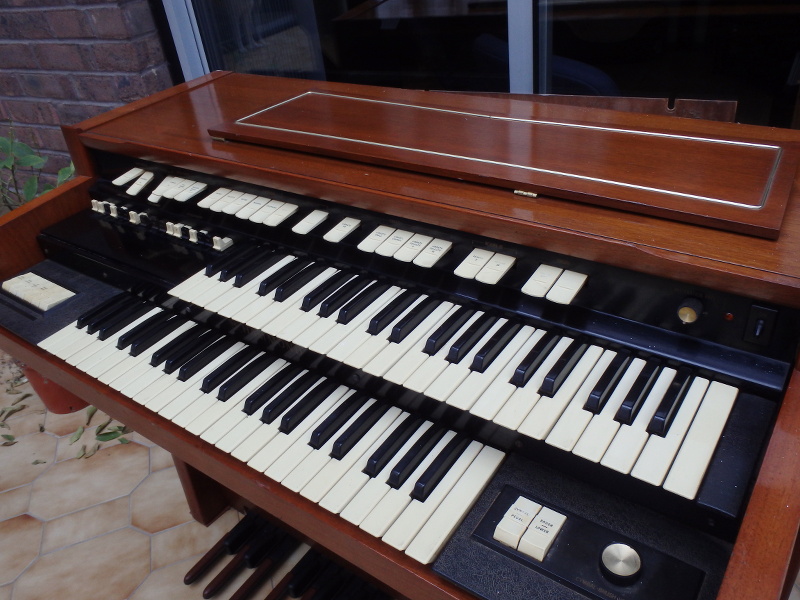

No chipped keys, score!

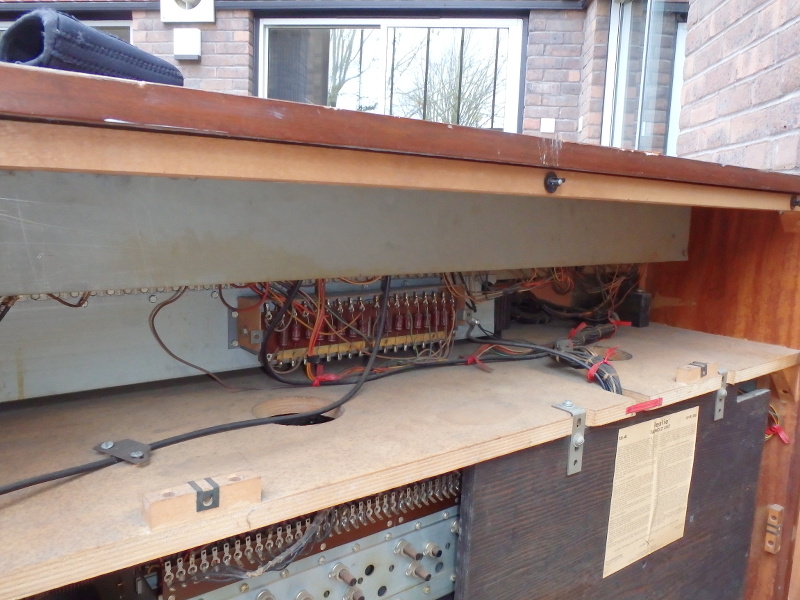

Mmm...spaghetti...Crossing my fingers that these wires are socketed where they go into at least the manual or tone generator...

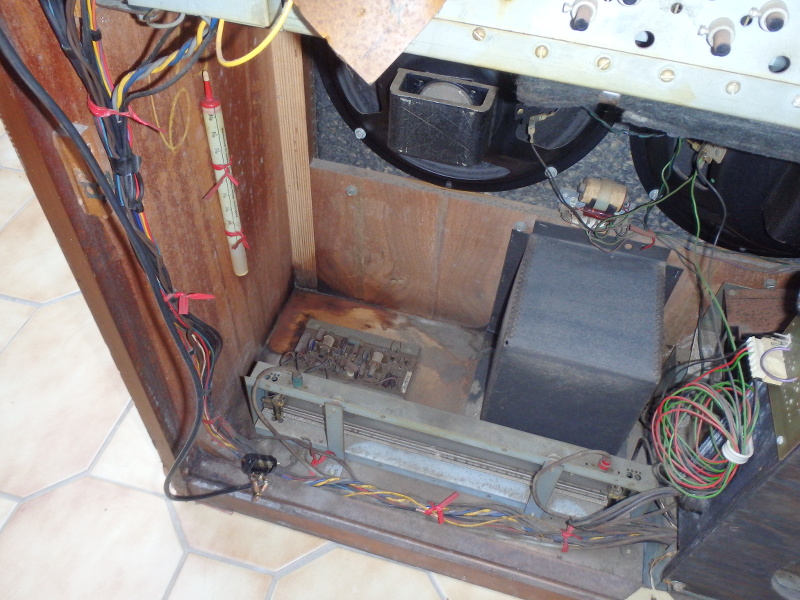

Tagstrips...lots of tagstrips...

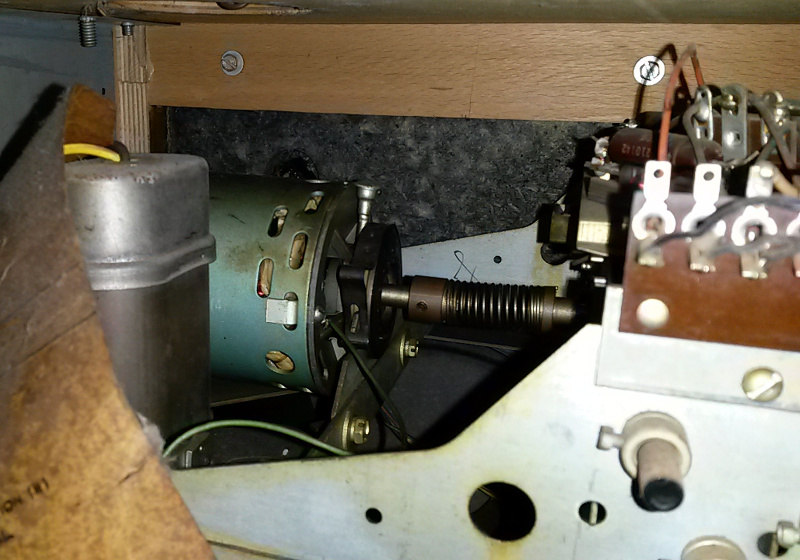

...and what is probably the most elaborate synchronous motor ever invented.
