Well that's the first half of the ball joint done, and what a struggle! :lol:

Richard called around today with his two little helpers and we got the hub out of the car in a reasonable time, awkward but no major problems, the main snag with that part of the job was one of the brake caliper bolts was so tight it broke Richards socket drive Torx T55, (sorry! :oops: ) luckily I had one too that had a meatier shank and it managed to get it undone, just.

We then headed over to Richards with the hub assembly just as the heavens opened up to make use of the giant vice and mig welder, and that's where the real fun began. :twisted:

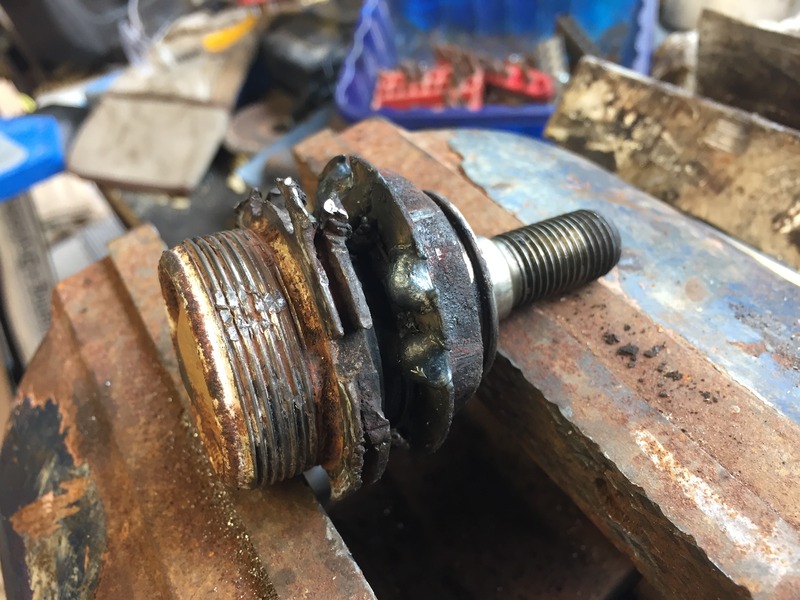

We ended up having to weld a nut onto the old joint since the flange was totally mashed up from last time and stillsons wouldn't move it either. Chisels and heat also didn't touch it. Even with a nut welded on, a breaker bar with a scaffold pipe and a blowtorch it took us I don't know how long. We were on the verge of giving up and looking for a replacement hub when it finally let go! You can see what was left of the joint with welded on nut here, it's had a hard time today.... :rofl2:


Before we started removing the ball joint we were a little bit suspicious of the wheel bearing, with the hub carrier in the vice it seemed to have some play in it, however by the time we had finished heating the ball joint the wheel bearing had a lot of play in it... whoops. :twisted: So that means a new wheel bearing is required. I think there is a chance the rattle may have actually been play in the wheel bearing rather than the ball joint!

So it was onto the wheel bearing puller to get the bearing out which went a bit more smoothly than the ball joint, although the circlip took an awful lot of persuading to come out as it was rusted in. A new ball joint has been fitted successfully so the hub is now awaiting a new wheel bearing to arrive over the next few days before going back on the car.

All in all success, so far, although it was a bit touch and go for a while there as that must have been the most stubborn lower ball joint ever I think! #-o

Thanks to Richard for all the help today, when I say help, what I actually mean was that I was helping him do the job. :lol: I think I'll be OK to do the reassembly of the hub back into the car by myself though, which is something I can do after work on a week day now that the days are quite long.

Fingers crossed the remainder of the job goes to plan. [-o<
RichardW wrote:No - apparently M10 x 1.25, so they are M10 fine - although if after market ones are fitted (we changed these didn't we?) they may well be std M10 x 1.5
I double checked and service citroen does say M10x1.25, but as you say the track rod ends are after market - Lemforder.

I might get both M10x1.25 and M10x1.5, for the cost of a few nuts its easier to just get both kinds! I'm actually struggling to find a source of M10x1.25 nylock nuts in an 8.8 or 10.9 hardness rating, the only M10x1.25 that I've found so far that are readily available are just "zinc plated steel" with no hardness rating specified, and I think for a steering joint its important to have a grade 8.8 or better nut ?
