Xantia Front Brakes Overhaul
Moderator: RichardW
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Xantia Front Brakes Overhaul
Hi All
I need to strip down the front brakes/calipers on my VSX as im 99% sure they are binding on.
Under normal cicumstances i would be replacing both disks and pads along with the handbrake cables as i need to eliminate as much as possible but it looks like im only going to have the cash replace the HB cables
I am aware the front caliper pistons need rewinding but are they as easy to strip apart as the rears.Can i remove the pads and have the pistons operating the same as on the rears to clean them/cover them with LHM
I am going to have to refit the existing pads unfortunately but as the caliper swings up and away from the disk would it be sensible to remove the caliper from the car completely to do this "overhaul".I think the only brake pipe on the fronts is the flexi hose which i replaced less than 3 weeks ago so not too concerned about having to undo it again
All comments gratefully recieved
Colin
I need to strip down the front brakes/calipers on my VSX as im 99% sure they are binding on.
Under normal cicumstances i would be replacing both disks and pads along with the handbrake cables as i need to eliminate as much as possible but it looks like im only going to have the cash replace the HB cables
I am aware the front caliper pistons need rewinding but are they as easy to strip apart as the rears.Can i remove the pads and have the pistons operating the same as on the rears to clean them/cover them with LHM
I am going to have to refit the existing pads unfortunately but as the caliper swings up and away from the disk would it be sensible to remove the caliper from the car completely to do this "overhaul".I think the only brake pipe on the fronts is the flexi hose which i replaced less than 3 weeks ago so not too concerned about having to undo it again
All comments gratefully recieved
Colin
simple answer no the front callipers have basicly two pistons one inside the other, and in the rear behind the lever is a set of conical spring washers,
there is a special tool to compress these washers on refitting, i belive there is also a worm drive type of ratchet,
quite often if the front callipers are binding and the cables are good, it could be either sticking pads which had been fitted dry (no copper slip), or the calliper slide at the top pivot has got hard dry grease or water ingres,
the other thing it the lever is bindding at its pivot in the rear of the calliper, just lube and work it till it swings back fully off on its own
regards malcolm
there is a special tool to compress these washers on refitting, i belive there is also a worm drive type of ratchet,
quite often if the front callipers are binding and the cables are good, it could be either sticking pads which had been fitted dry (no copper slip), or the calliper slide at the top pivot has got hard dry grease or water ingres,
the other thing it the lever is bindding at its pivot in the rear of the calliper, just lube and work it till it swings back fully off on its own
regards malcolm
-
- Posts: 1626
- Joined: 26 Feb 2004, 23:21
- Location: Cloud Cuckooland
- My Cars: C5 V6 Mk1 assainated by wife
Renault Kangoo 1.6 auto, tarted up and remapped
Still missing the Xantia V6
Not missing the AX - Contact:
I recently overhauled my front calipers as I was changing the discs and pads also ( as you may remember). They weren't actually binding though, I just did it while I was in there. I think if there is any stiffness its likely to be in the sliding pins rather than the piston.
I cleaned out all the old hard grease and replaced it with some brake grease which I got from ebay. All the rubber boots were in good nick so didn't need replacing. I think it would be much easier to remove the caliper to do a really good job of it.
I cleaned out all the old hard grease and replaced it with some brake grease which I got from ebay. All the rubber boots were in good nick so didn't need replacing. I think it would be much easier to remove the caliper to do a really good job of it.
It infuriates me to be wrong when I know I'm right
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
- CitroJim
- A very naughty boy
- Posts: 49661
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6204
- Contact:
One thing to check Colin is that the piston gaiters have not split, let moisture in and rusted the pistons near the ends.
If the old pads were very, very worn and the pistons were paractically right out and the gaiter split, rust can form on the exposed part of the piston. When the piston is retracted to install new pads, this rust may prevent the piston moving freely and thus cause a bit of binding. It will not necessarily be given away by LHM leaks.
More than likely though, as siad, it's either the slides need a good clean and grease or the pads arebinging in te caliper frame. I always find the caliper frames (where the pads slide) need a really good clean-up before the pads will slide freely.
If the old pads were very, very worn and the pistons were paractically right out and the gaiter split, rust can form on the exposed part of the piston. When the piston is retracted to install new pads, this rust may prevent the piston moving freely and thus cause a bit of binding. It will not necessarily be given away by LHM leaks.
More than likely though, as siad, it's either the slides need a good clean and grease or the pads arebinging in te caliper frame. I always find the caliper frames (where the pads slide) need a really good clean-up before the pads will slide freely.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
After reading above replies there is not much to add.
To prevent binding I clean metal parts with a small copper/iron brush (also brake cleaner spray). Then I apply some copper paste, brake grease and grease to the locations as marked in the picture.
I usually take care of the below issues to prevent binding:
- caliper sideways movement (pivot lubrication nr 1)
- all gaiters not damaged or cracked
- brake pads sliding easily
- hand brake cable not damaged (check around first circular guidance)
- spring mechanism not rusted. lift up the rubber protector(number 2), clean and fill it with grease. cable tier to fix
To prevent binding I clean metal parts with a small copper/iron brush (also brake cleaner spray). Then I apply some copper paste, brake grease and grease to the locations as marked in the picture.
I usually take care of the below issues to prevent binding:
- caliper sideways movement (pivot lubrication nr 1)
- all gaiters not damaged or cracked
- brake pads sliding easily
- hand brake cable not damaged (check around first circular guidance)
- spring mechanism not rusted. lift up the rubber protector(number 2), clean and fill it with grease. cable tier to fix
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Brake caliper grease can be applied without caliper undo. Turn caliper upwards. Slide it to end limit and gently lift rubber seals of slide from ends with a small flat head screwdriver. Add some caliper grease and slide caliper from end to end couple of times. I do this treatment once a year, especially before winter season. It saves a lot of trouble. (
Release handbrake cable and pull it off the hole on the caliper. Take care that you don't release the other end of the cable under the car.
Then you will have "how to fit HB cable" job

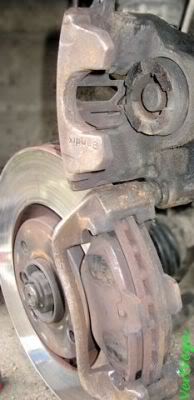

This picture is taken before the cleaning and greasing process, with all the dirt, rust and brake dust
I never had to remove piston during overhaul. Just clean it while it is still out and rewind because it is already having a LHM bath

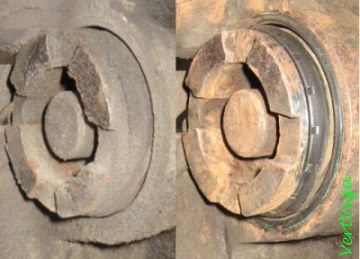

Here is before and after picture 8)
Release handbrake cable and pull it off the hole on the caliper. Take care that you don't release the other end of the cable under the car.
Then you will have "how to fit HB cable" job
This picture is taken before the cleaning and greasing process, with all the dirt, rust and brake dust
I never had to remove piston during overhaul. Just clean it while it is still out and rewind because it is already having a LHM bath
Here is before and after picture 8)
Last edited by VertVega on 04 Sep 2009, 13:44, edited 1 time in total.
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
admiral51 or someone else, when you replace flexi brake hose, do you depressurize system? What's the most usual cause to replace it, I mean do they start leaking, having cracks or some other reason? I still have the originals and it is for sure they don't last forever
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
-
- Posts: 1626
- Joined: 26 Feb 2004, 23:21
- Location: Cloud Cuckooland
- My Cars: C5 V6 Mk1 assainated by wife
Renault Kangoo 1.6 auto, tarted up and remapped
Still missing the Xantia V6
Not missing the AX - Contact:
Just make sure you don't let them get to this stage........
http://forums.vwvortex.com/zerothread?id=4534625
http://forums.vwvortex.com/zerothread?id=4534625
It infuriates me to be wrong when I know I'm right
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
Lexia ponce
http://perception.dyndns.biz/~avengineering/index.htm
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Thanks for your reply Mike, it seems to be much easier than I thought. I will check during day time their condition.
Stempy, those US cars with powerful engines (V6...V12) deserve proper Air-cooled brake discs
Fortunately we are only dealing with French cars here
Stempy, those US cars with powerful engines (V6...V12) deserve proper Air-cooled brake discs
Fortunately we are only dealing with French cars here
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Hi VertVega
Sorry for the long response intermittent connections to the web(OK i forgot to pay the bill )
I seem to remember that someone said the brake union fitting sizes were dependant on whether or not ABS was fitted but cant seem to find it just now
Thanks for the pics very helpful but have yet to start this job as other things reared their ugly head over the weekend,fingers crossed for this weekend
As superloopy says i didnt release the pressure when i did my front hoses
Colin
Sorry for the long response intermittent connections to the web(OK i forgot to pay the bill )
I seem to remember that someone said the brake union fitting sizes were dependant on whether or not ABS was fitted but cant seem to find it just now
Thanks for the pics very helpful but have yet to start this job as other things reared their ugly head over the weekend,fingers crossed for this weekend
As superloopy says i didnt release the pressure when i did my front hoses
Colin
