Ahh, so we missed a bit
Still, we can go back in any time now free of charge for the rest of the year and I'm down that way pretty frequently...
Vince, you'd be in seventh heaven down there


Vince, you'd be in seventh heaven down there

Xac wrote:drapeau tricolore
Spot-on bothpug_owner2002 wrote:Car colours the same as the flag by any chance?

Jim
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- A very naughty boy
- Posts: 52707
- Joined: 30 Apr 2005, 23:33
- x 7229
I've finally done it
I've made my sphere tester

A job that's been waiting in the wings now for about two years.
Just a lash-up at the moment to ensure it works and it does, nicely and tested against a known sphere...
Made from a pump and pressure regulator from an early "Sinker" Xantia and using mainly the pipes from same. The pipe from pump to regulator was far too long so I carefully coiled it around the LHM "reservoir" which serves to hold it in place...
The hardest bit was the gauge connection to a stub of 4.5mm pipe. I used a nut from an 8mm compression fitting that fitted the thread on the gauge and had to turn up a reducing feurrle from brass in the lathe. The feurrrle was then brazed to the pipe.
Originally I hoped a nut from a diesel injection pipe would do for the gauge connection but sadly it turned out slightly too small.. If that had worked, it would have saved a lot of work.

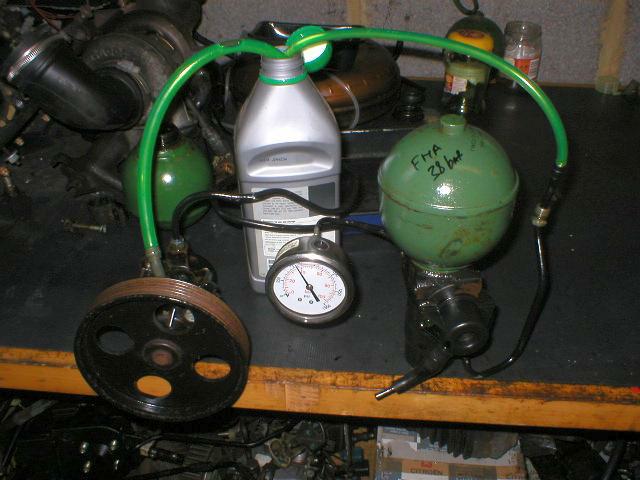

Here's a couple of shots of it. They're a bit dark for some reason
Front view:

Rear View:

No leaks, it's been holding at 38bars now for a couple of hours... A test of my brazing skills if nothing else...
Next job is to properly fit it all to a baseboard and framework. For now it's sitting on the very end of my bench and fully functional. I have a feeling that is where it may stay for some time
Can I expect a visit from you with an armful of spheres in the near future Xac?
I'll get the kettle on



A job that's been waiting in the wings now for about two years.
Just a lash-up at the moment to ensure it works and it does, nicely and tested against a known sphere...
Made from a pump and pressure regulator from an early "Sinker" Xantia and using mainly the pipes from same. The pipe from pump to regulator was far too long so I carefully coiled it around the LHM "reservoir" which serves to hold it in place...
The hardest bit was the gauge connection to a stub of 4.5mm pipe. I used a nut from an 8mm compression fitting that fitted the thread on the gauge and had to turn up a reducing feurrle from brass in the lathe. The feurrrle was then brazed to the pipe.
Originally I hoped a nut from a diesel injection pipe would do for the gauge connection but sadly it turned out slightly too small.. If that had worked, it would have saved a lot of work.
Here's a couple of shots of it. They're a bit dark for some reason

Front view:

Rear View:

No leaks, it's been holding at 38bars now for a couple of hours... A test of my brazing skills if nothing else...
Next job is to properly fit it all to a baseboard and framework. For now it's sitting on the very end of my bench and fully functional. I have a feeling that is where it may stay for some time


Can I expect a visit from you with an armful of spheres in the near future Xac?


I'll get the kettle on

Jim
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- Posts: 880
- Joined: 01 Apr 2009, 21:06
- x 4
-
- Monaco's youngest playboy
- Posts: 4878
- Joined: 25 Nov 2006, 10:15
- x 38
-
- Posts: 7654
- Joined: 08 Feb 2007, 00:46
- x 185
Turn the brightness up on your screen Jim, the pics look bright enough to me

1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
-
- Posts: 3335
- Joined: 30 Mar 2005, 03:25
- x 18
Me too ... it looks all 'bright green and shiny' on my screenXac wrote:Turn the brightness up on your screen Jim, the pics look bright enough to me

Mike
Xantia Activa Dante Red MK1 (96) 121k - SORN, to be broken
Xantia Activa Silex Grey MK2 (98) 120k -SORN, ditto
Xantia V6 Silex Grey MK2 (98) 95k - non-runner
Xantia TD Storm Grey MK1 (95) 95k - non-runner
Xantia Activa Dante Red MK1 (96) 121k - SORN, to be broken
Xantia Activa Silex Grey MK2 (98) 120k -SORN, ditto
Xantia V6 Silex Grey MK2 (98) 95k - non-runner
Xantia TD Storm Grey MK1 (95) 95k - non-runner
-
- Forum Treasurer
- Posts: 11904
- Joined: 07 Aug 2002, 17:12
- x 1290
-
- A very naughty boy
- Posts: 52707
- Joined: 30 Apr 2005, 23:33
- x 7229
It's not a problem RichardRichardW wrote:Now all you need is an adaptor for testing anti-sink spheres....

I'm told all spheres begin life as accumulators and corners and anti-sinks just have different central inserts fitted
Jim
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- (Donor 2021)
- Posts: 4625
- Joined: 27 Nov 2005, 20:07
- x 36
-
- A very naughty boy
- Posts: 52707
- Joined: 30 Apr 2005, 23:33
- x 7229

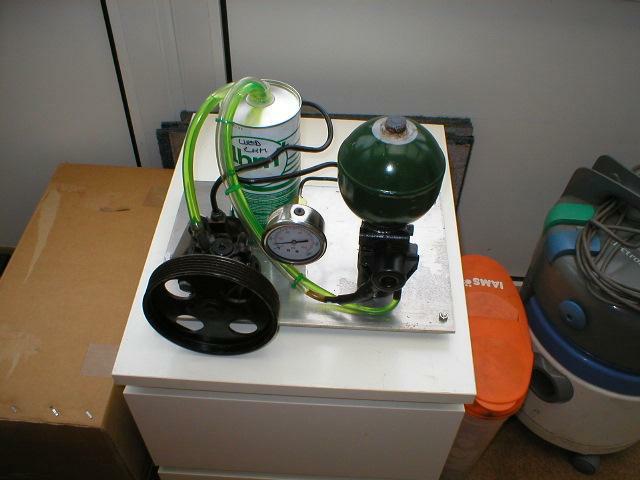

Despite being very pre-occupied with may other things recently, I did manage to finish off the sphere tester. I couldn't just leave it as a rough lash-up on the end of the bench!
It's now properly built onto a sturdy aluminium plate and everthing securely mounted along with a new reservoir, an old metal LHM can rather than a plastic bottle... Mounting the pump took a bit of creative metal-bashing...

I've already used it in anger, testing the front spheres on my V6.
The two corners were a bit low at 30 and 35bars so they have been replaced. The centre hydractive sphere was bang-on...
Next task will be to check all the spheres on the Activa, along with a few other odd jobs.
It's now properly built onto a sturdy aluminium plate and everthing securely mounted along with a new reservoir, an old metal LHM can rather than a plastic bottle... Mounting the pump took a bit of creative metal-bashing...

I've already used it in anger, testing the front spheres on my V6.
The two corners were a bit low at 30 and 35bars so they have been replaced. The centre hydractive sphere was bang-on...
Next task will be to check all the spheres on the Activa, along with a few other odd jobs.
Jim
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- Posts: 4808
- Joined: 11 Jun 2007, 16:17
- x 233
-
- A very naughty boy
- Posts: 52707
- Joined: 30 Apr 2005, 23:33
- x 7229
Just by turning the pump pulley by hand Mike. I'm using the "sinker" 6 piston pump with a high output and it only takes a few turns to get up to pressure.
In use, screw on the sphere under test, close the bleed valve and rotate the pump until the gauge reading does not increase any more. The gauge then reads the sphere pressure.
Release the pressure by opening the bleed valve whereupon LHM will rush back to the reservoir via the return pipe and remove. Hardy any loss of LHM when you remove the sphere.
"Blown" spheres will give them selves away by the gauge reading going up and up and up until it is off the scale. Then, even after releasing pressure, there will be an unholy mess as the sphere will be full of LHM
I'm not going into production Mike. They're not hard to build. You just need a pump, a regulator block and the pipe 'twixt pump and block. The best pump/regulator to use is one from a sinker as a 6+2 pump from an anti-sink has the PAS-side you have to deal with by taking it's output directly to the reservoir and a sinker pressure regulator has the FDV takeoff which serves as an excellent connection for the return line back to the reservoir. Also, the 6+2 has lower output so more turns. If I were using a 6+2 I'd use the PAS side (6 pistons) for the tester. The best pump of all would be a CX/BX or early XM type as it is easier to mount.
The biggest problem will always be the method to interface the gauge to the steel 4.5 mm pipe. I needed to fabricate an adapter.
The whole lot can be mounted on a wooden base-board.
If anyone wants, I'd be happy to supply full constructional details.
In use, screw on the sphere under test, close the bleed valve and rotate the pump until the gauge reading does not increase any more. The gauge then reads the sphere pressure.
Release the pressure by opening the bleed valve whereupon LHM will rush back to the reservoir via the return pipe and remove. Hardy any loss of LHM when you remove the sphere.
"Blown" spheres will give them selves away by the gauge reading going up and up and up until it is off the scale. Then, even after releasing pressure, there will be an unholy mess as the sphere will be full of LHM

I'm not going into production Mike. They're not hard to build. You just need a pump, a regulator block and the pipe 'twixt pump and block. The best pump/regulator to use is one from a sinker as a 6+2 pump from an anti-sink has the PAS-side you have to deal with by taking it's output directly to the reservoir and a sinker pressure regulator has the FDV takeoff which serves as an excellent connection for the return line back to the reservoir. Also, the 6+2 has lower output so more turns. If I were using a 6+2 I'd use the PAS side (6 pistons) for the tester. The best pump of all would be a CX/BX or early XM type as it is easier to mount.
The biggest problem will always be the method to interface the gauge to the steel 4.5 mm pipe. I needed to fabricate an adapter.
The whole lot can be mounted on a wooden base-board.
If anyone wants, I'd be happy to supply full constructional details.
Jim
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- Posts: 3980
- Joined: 10 Jul 2006, 12:11
- x 27
-
- Posts: 1409
- Joined: 22 May 2008, 22:29
- x 13
Amazing
....I know its functional Jim but it also looks awesome
The old style LHM can and clear LHM lines look great.
Id have one on a shelf in the house just to annoy Linda....I can hear it now....Vince WTF is that ?


The old style LHM can and clear LHM lines look great.
Id have one on a shelf in the house just to annoy Linda....I can hear it now....Vince WTF is that ?
